MKS Servos HBL880 Brushless Titanium Gear High Torque Digital Tail Servo HV

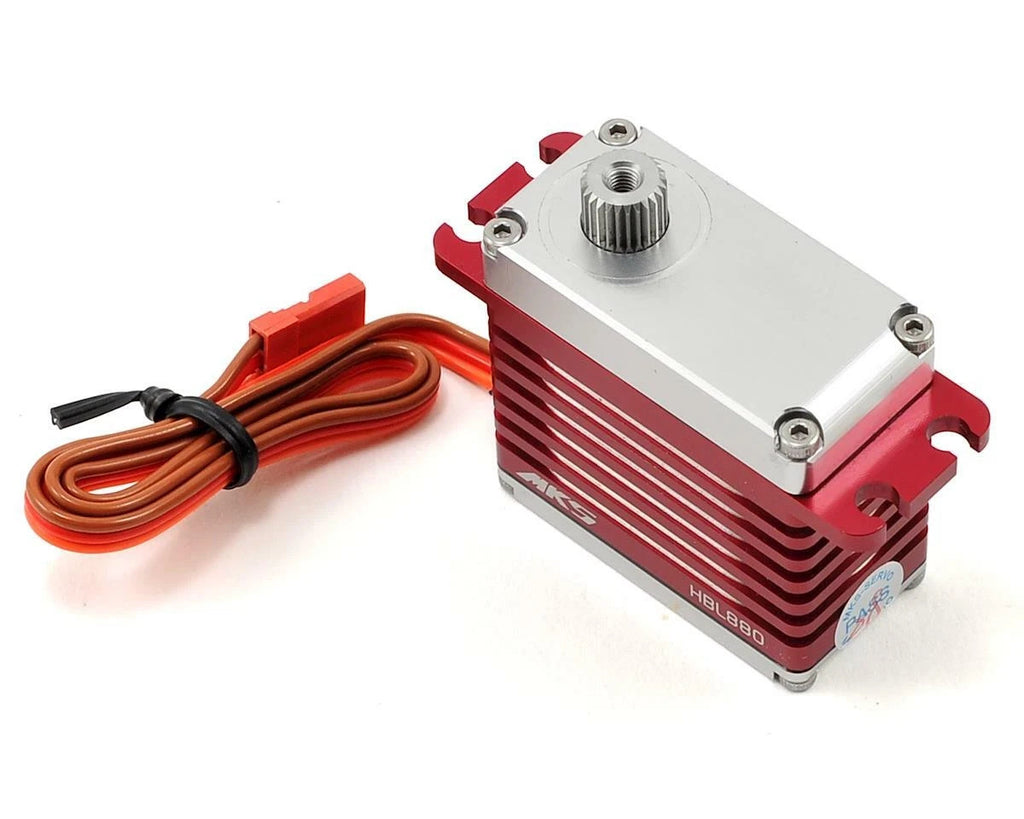

This is the MKS HBL880 Brushless Titanium Gear High Speed Digital Tail Servo.

Specifications:

  • Dead Band: 0.0008ms (Default)
  • Control System: +Pulse Width Control
  • Working Frequency: 760?s / 560hz
  • Operating Voltage: 6 ~ 8.4 Volts
  • Operating Temperature Range: -10 to + 60 Degree C
  • Operating Speed:
    • @6V: 0.044 sec/60° degrees at no load
    • @7.4V: 0.036 sec/60° degrees at no load
    • @8.4V: 0.032 sec/60° degrees at no load
  • Stall Torque:
    • @6V: 113.87 oz-in (8.2 kg/cm)
    • @7.4V: 140.26 oz-in (10.1 kg/cm)
    • @8.4V: 155.39 oz-in (11.19 kg/cm)
  • 360° Modifiable: NO
  • Motor Type: Brushless Motor
  • Potentiometer Drive: Indirect Drive
  • Bearing Type: Dual Ball Bearings
  • Gear Type: Metal Gears
  • Connector Wire Length: 24.0 cm (9.4 in)
  • Dimensions: 40x20x38.5mm
  • Weight: 73.2g
