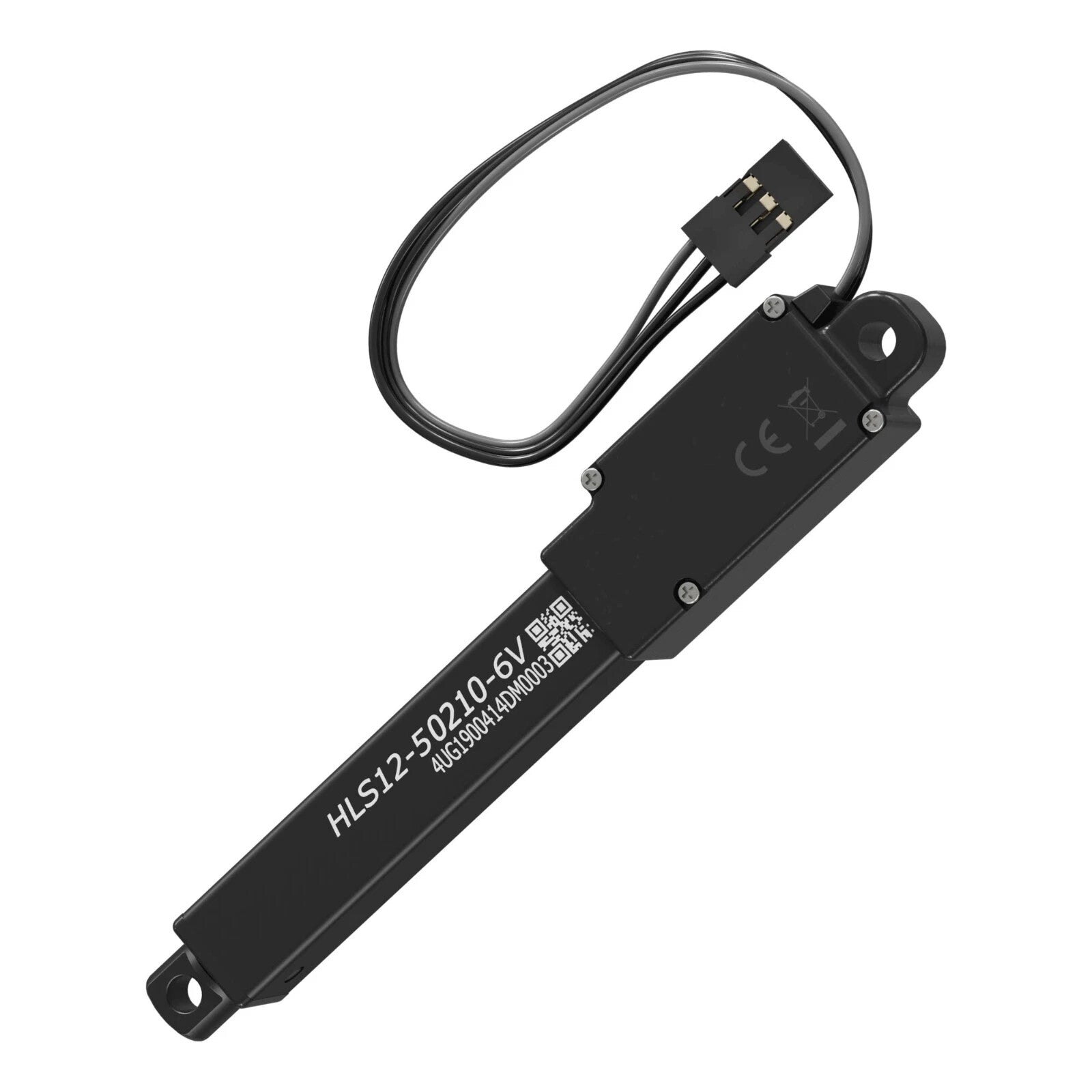

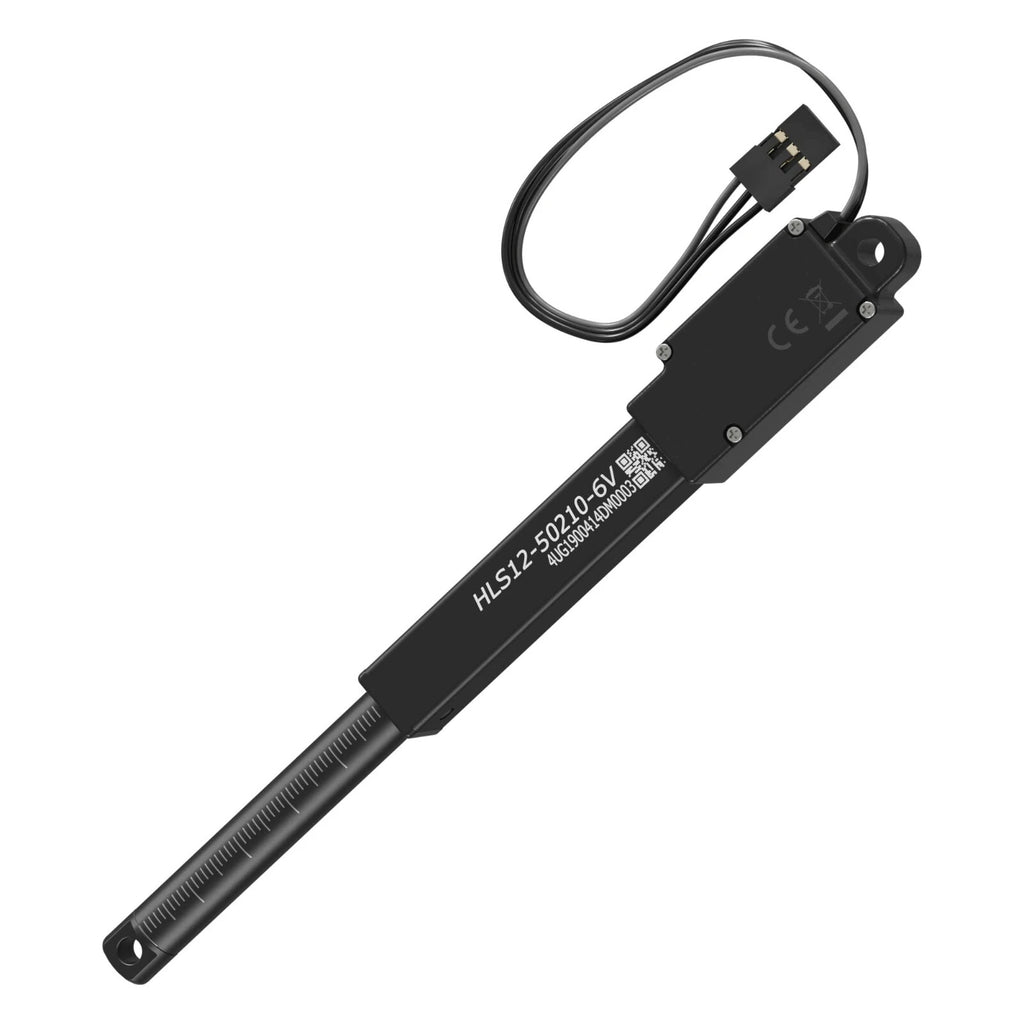

With 50mm of travel and a 210:1 gear ratio, the HLS12-50210 is ideal for medium stroke applications requiring higher power.
Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950µs input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.
The HLS12-5050 and HLS12-50100 offer more speed, while additional force is available with our high gear ratio HLS12-50380.
Applications requiring less travel will be better matched to our HLS12-30XX linear actuators, while the HLS12-100XX series offers more excursion.
| Servo Specifications | |
| Command Protocol | PWM |
| Lead Screw | 5mm |
| Motor Type | Cored Metal Brush |
| Operating Voltage (Volts DC) | 4.0V ~ 8.4V |
| Testing Voltage | 6.0V |
| Gear Ratio | 210:1 |
| No Load Speed | 6.1mm/s |
| No Load Current | 100mA |
| Maximum Efficiency Point | Load (kg / N): 3.6 / 35 Speed (mm/s): 13.0 Current (mA): 200 |
| Pear Power Point | Load (kg / N): 6.2 / 61 Speed (mm/s): 3.2 Current (mA):310 |
| Max Force (Lifted) | Load (kg /N): 8.0 / 79 Speed (mm/s): 2.3 Current (mA): 400 |
| Stall Force | 5.0kgf (49.03N) |
| Stall Current | 500mA |
| Max Static Force | 20.39kgf (200N) (above) |
| Stroke SPEC | 50mm |
| Repeatability | ±0.3mm |
| Max Side Load (Extended) | 3.06kgf (30N) |

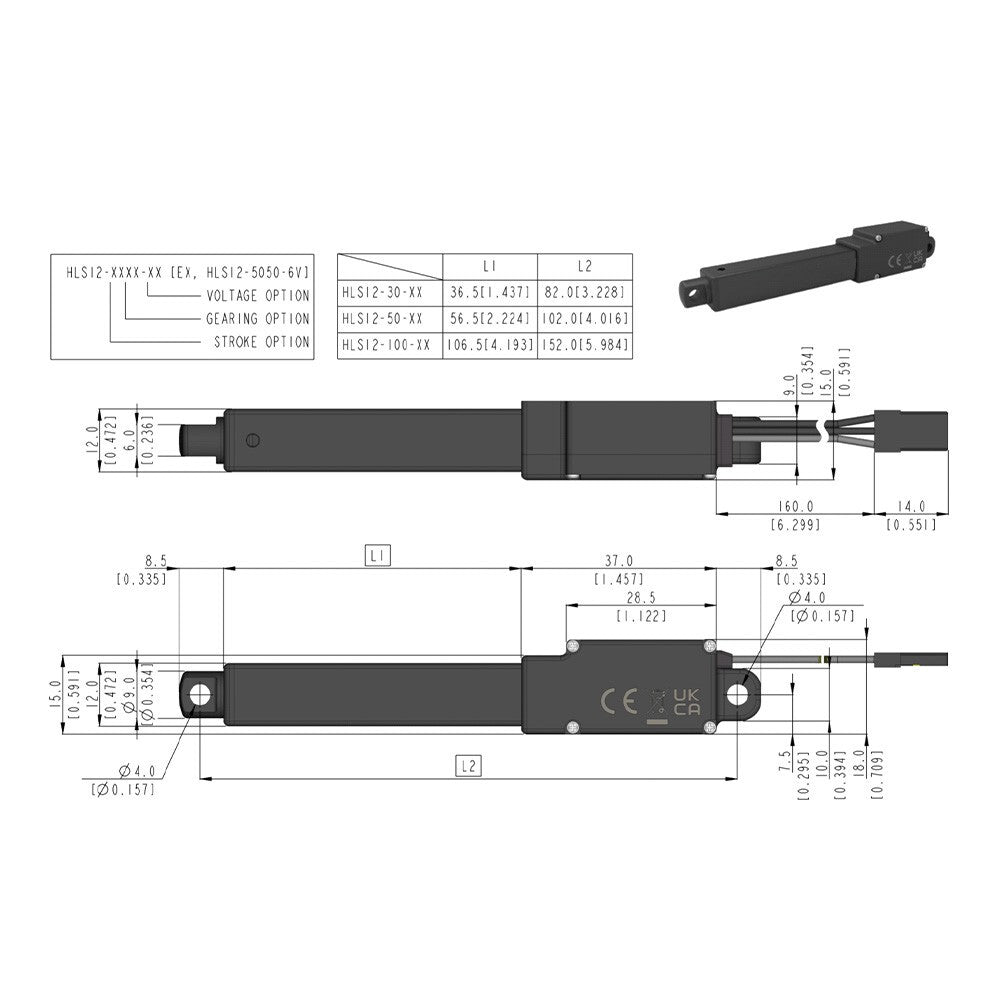

| Outline Dimensions | 102.0 x 15.0 x 18.0mm ( 4.02 x 0.59 x 0.71 in. ) |
| Weight | 40g (1.41 oz) |
| Connector Wire Length | 160mm (6.29 in.) |
| Connector Wire Gauge | 24AWG |
| Bearing Type | Flange bearing |
| Case Material | Engineering Plastic & Aluminum Pipe |
| Gear Material | 4 Metal Gears |
| IP Rating | IP4X |
| Servo Amplifier Type | 32bit programmable Digital |
