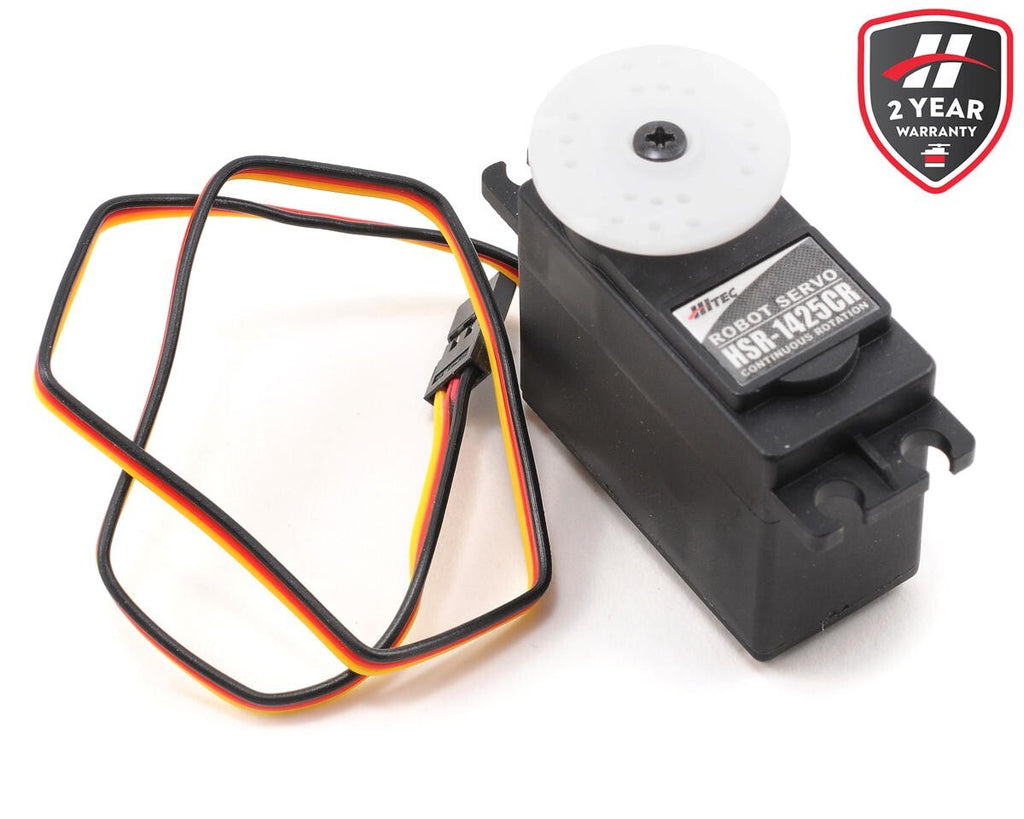

The HSR-1425CR is the continuous rotation (non-proportional) version of the HS-425HB ideal for robotic applications. This servo has a universal type connector.
Specifications:
$24.95
Specifications:
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
- Speed (RPM): 43 ~ 52
- Maximum Torque Range oz. / in.: 39 ~ 47
- Maximum Torque Range kg. / cm.: 2.8 ~ 3.4
- Current Draw at Idle: 8 mA
- No Load Operating Current Draw: 150 mA
- Stall Current Draw: 640 mA
- Dead Band Width: 10 µs
- Dimensions (Inches): 1.59 x 0.77 x 1.44
- Dimensions (Metric): 40.6 x 19.8 x 36.6
- Weight (Ounces): 1.47
- Weight (Gram): 41.7
- Circuit Type: HT7003 Analog SMT
- Motor Type: 3 Pole Metal Brush Ferrite
- Gear Material: Nylon
- Bearing Type: Dual Ball Bearing
- Output Shaft (type / Ømm): Standard 24
- Case Material: Plastic
- Connector Gauge (AWG) / Strand Count: 25 / 40
