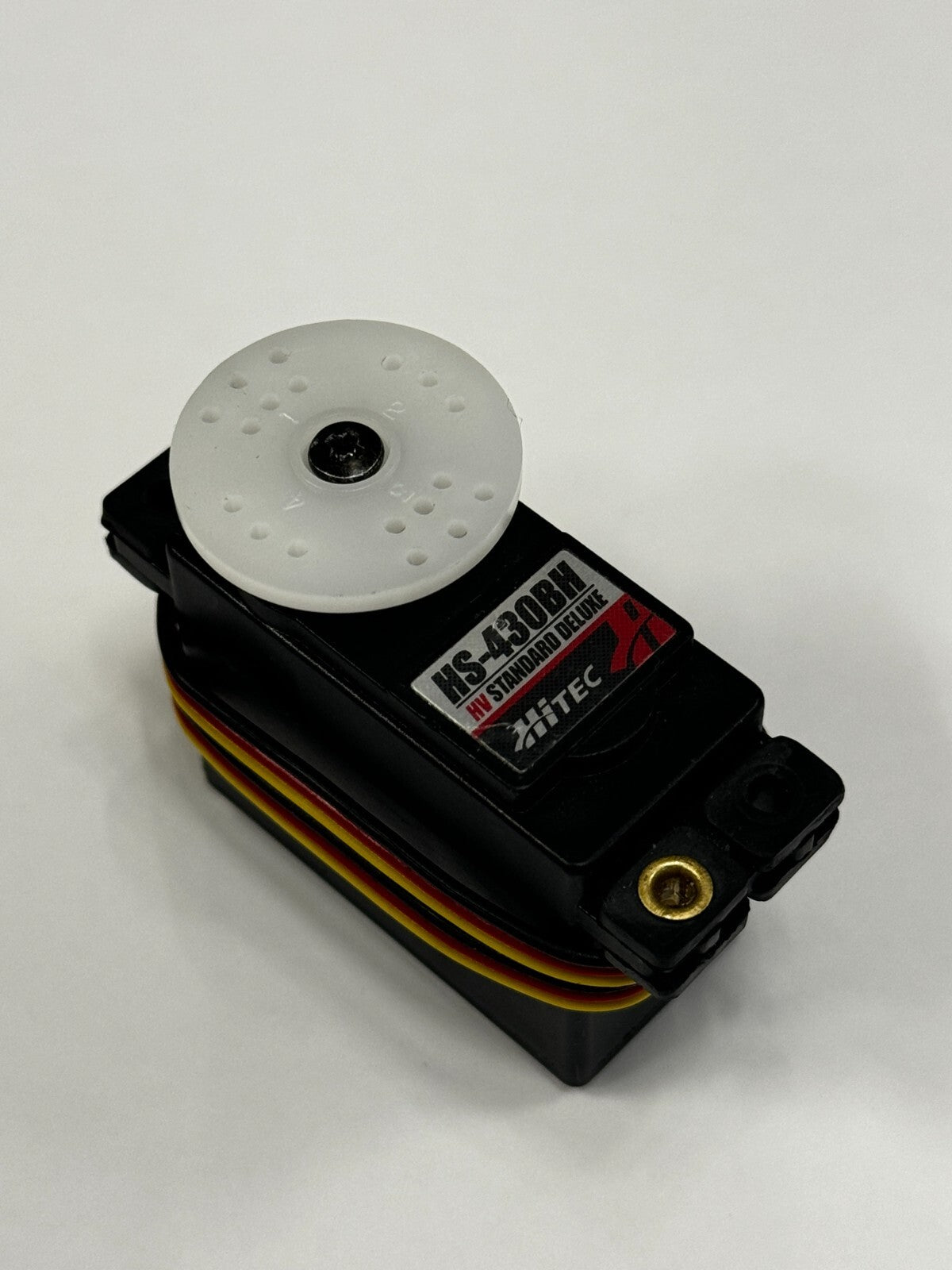

Based on the popular HS-425BB, Hitec's deluxe ball bearing HS-430BH is our budget-minded analog servo capable of 6.0 to 7.4 volt operation. Designed with the novice hobbyist in mind, this low cost servo can be used for control surfaces on beginner airplanes and as a throttle or replacement servo for many ready-to-fly models. Its excellent durability and dependability make it a solid choice for beginner pilots.

Specification:

• Dimensions: 1.59" x 0.77" x 1.44" (40.6 x 19.8 x 36.6mm)
• Product Weight: 1.6oz (45.5g)
• Output Shaft Style: 24 tooth spline
• Voltage Range: 6.0V - 7.4V
• No-Load Speed (6.0V): 0.16sec/60
• No-Load Speed (7.4V): 0.14sec/60
• Stall Torque (6.0V): 57 oz/in. (4.1kg.cm)
• Stall Torque (7.4V): 69 oz/in. (5.0kg.cm)
• Max PWM Signal Range (Standard): 553-2520 sec
• Travel per µs (out of box): .096/μsec
• Max Travel (out of box): 189
• Pulse Amplitude: 3-5V
• Operating Temperature: -20C to +60C
• Continuous Rotation Modifiable: Yes
• Direction w/ Increasing PWM Signal: Clockwise
• Deadband Width: 8
• Motor Type: 3 Pole Ferrite
• Potentiometer Drive: Indirect Drive
• Feedback Style: 5K Potentiometer
• Output Shaft Support: Top Ball Bearing
• Gear Type: Straight Cut Spur
• Gear Material: Nylon
• Wire Length: 11.81" (300mm)
• Wire Gauge: 25AWG
