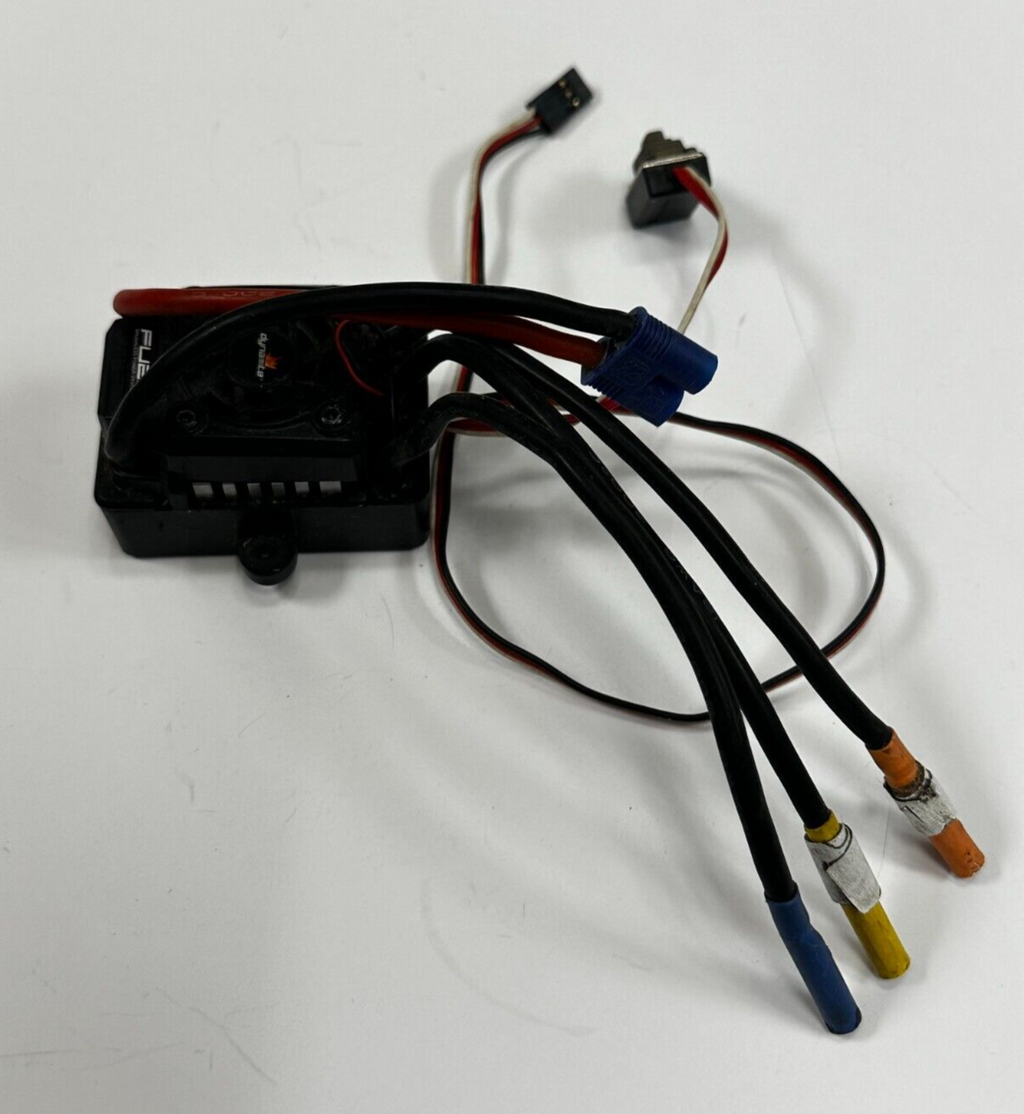

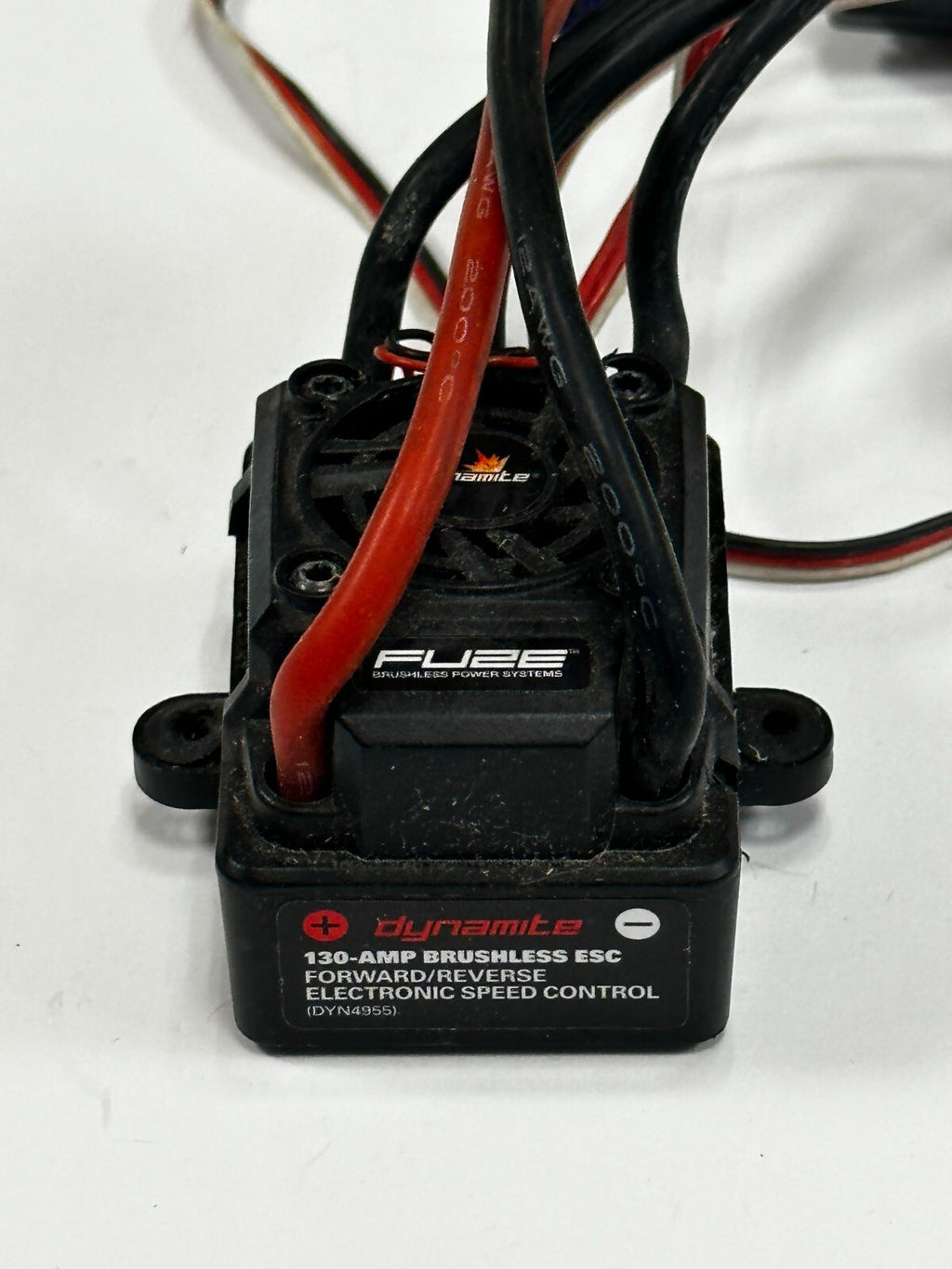

DYN4955 Dynamite Fuze 130 AMP Sensorless Waterproof Brushless ESC 4WD SCT 1/8

This is the Dynamite Fuze 130A Sensorless Waterproof Brushless ESC, intended for use with 4WD SCT and 1/8 applications. This ESC is also a replacement for a variety of Losi RTR models.

Features:

  • Easy to program via your transmitter or compact program card. No need to haul around a PC

Specifications:

  • Forward: Yes
  • Reverse: Yes
  • Brake: Yes
  • Time Delay Brake: Yes
  • Continuous Maximum Current: 130A
  • Input Voltage: 6-12 cells NiMH - NiCd, 2-4 cells LiPo - LiFe
  • Motor Limit: 2S LiPo - up to 6000KV, 3S LiPo - up to 4000KV, 4S - up to 3000KV
  • Momentary Peak Current: 760A
  • Length: 53.5mm
  • Width: 36mm
  • Height: 36mm
  • Weight: 79g
  • BEC Voltage: 6V
  • PWM Frequency: 8kHz
  • Overload Protection: Yes
  • Full On Resistance: 0.0004 ohm
