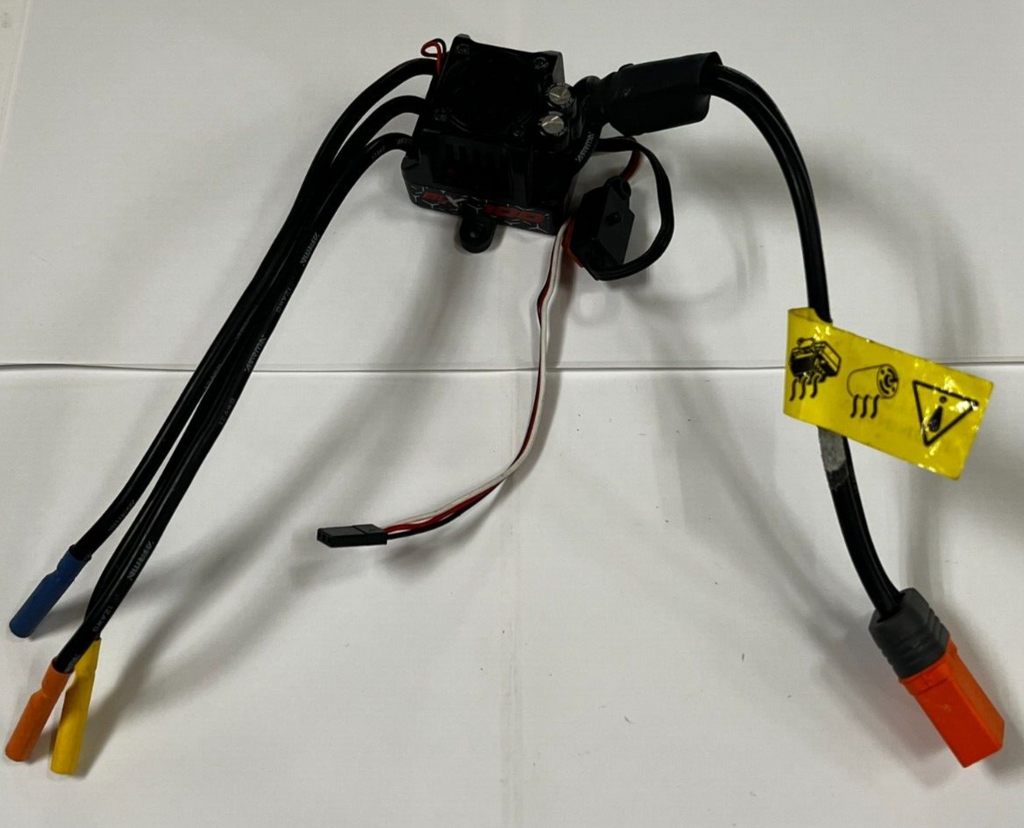

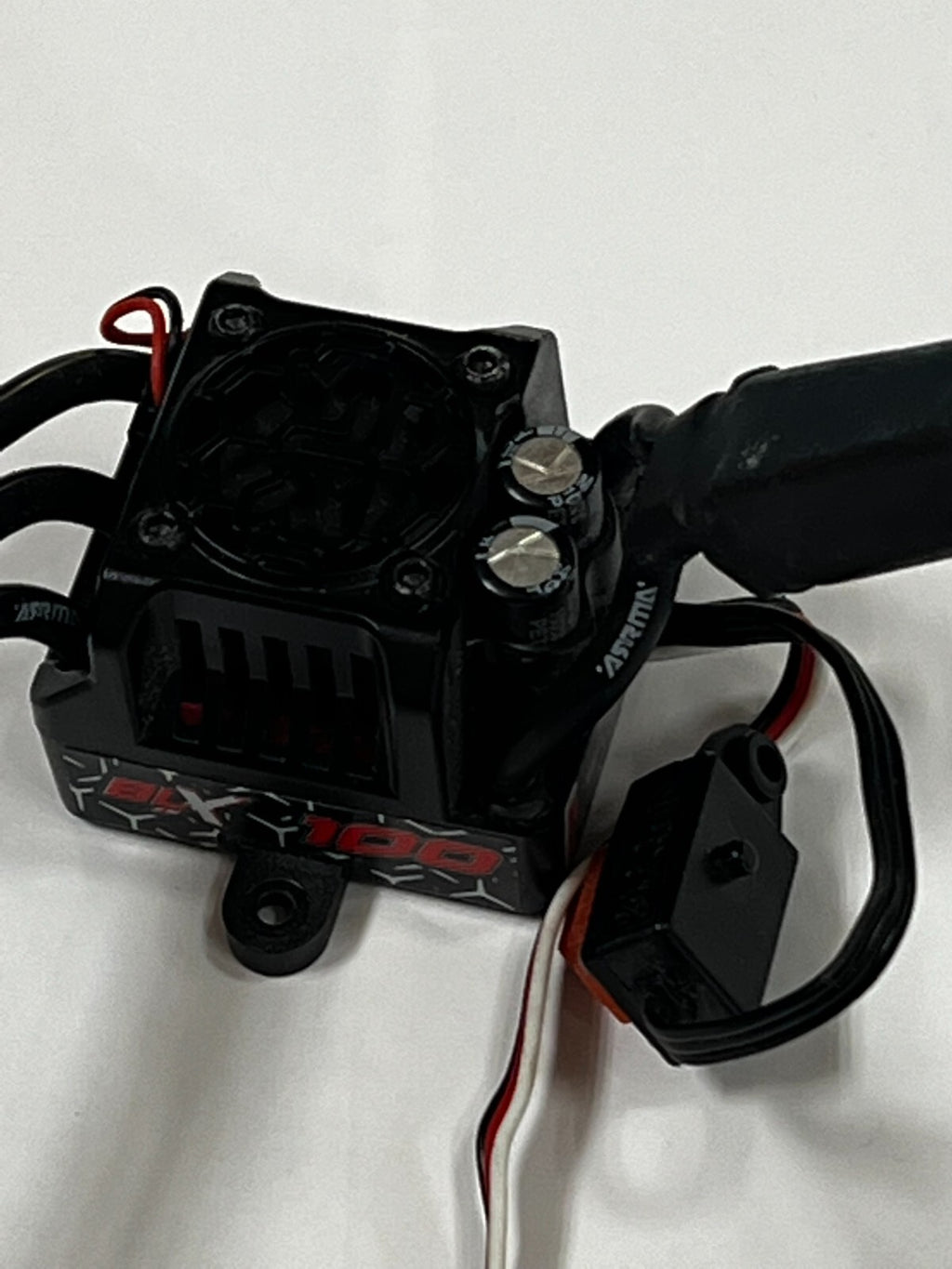

The Arrma BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.
Features:
Includes:
$69.95
Features:
- Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
- The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
- Battery usage: 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH
- Low Voltage Cut-Off (LVC): 3.4V per cell
- Thermal Protection Temperature: 125°C / 257°F
- Over-Voltage Protection: Over 12.6V
- BEC Voltage: 6V
- BEC Current: 4A
- ESC Length: 43mm / 1.69"
- ESC Height: 34mm / 1.34"
- ESC Width: 54.5mm / 2.15" (Including hold-down tabs)
- ESC Weight: 120g / 4.2oz
- Receiver Wire Length: 170mm / 6.70"
- Battery Wire Length: 125mm / 4.92"
- Motor Wire Length (Including Connector): 200mm / 7.87"
- Switch Length: 110mm / 4.33"
- Switch Width: 12.8mm / 0.5"
- Switch Height: 18mm / 0.71"
- Motor Bullet Connector Size: 4mm / 0.16"
- Wire Specifications: 12AWG
- ESC Battery Connector Type: EC5
Includes:
- (1) BLX100 Brushless 3S ESC
