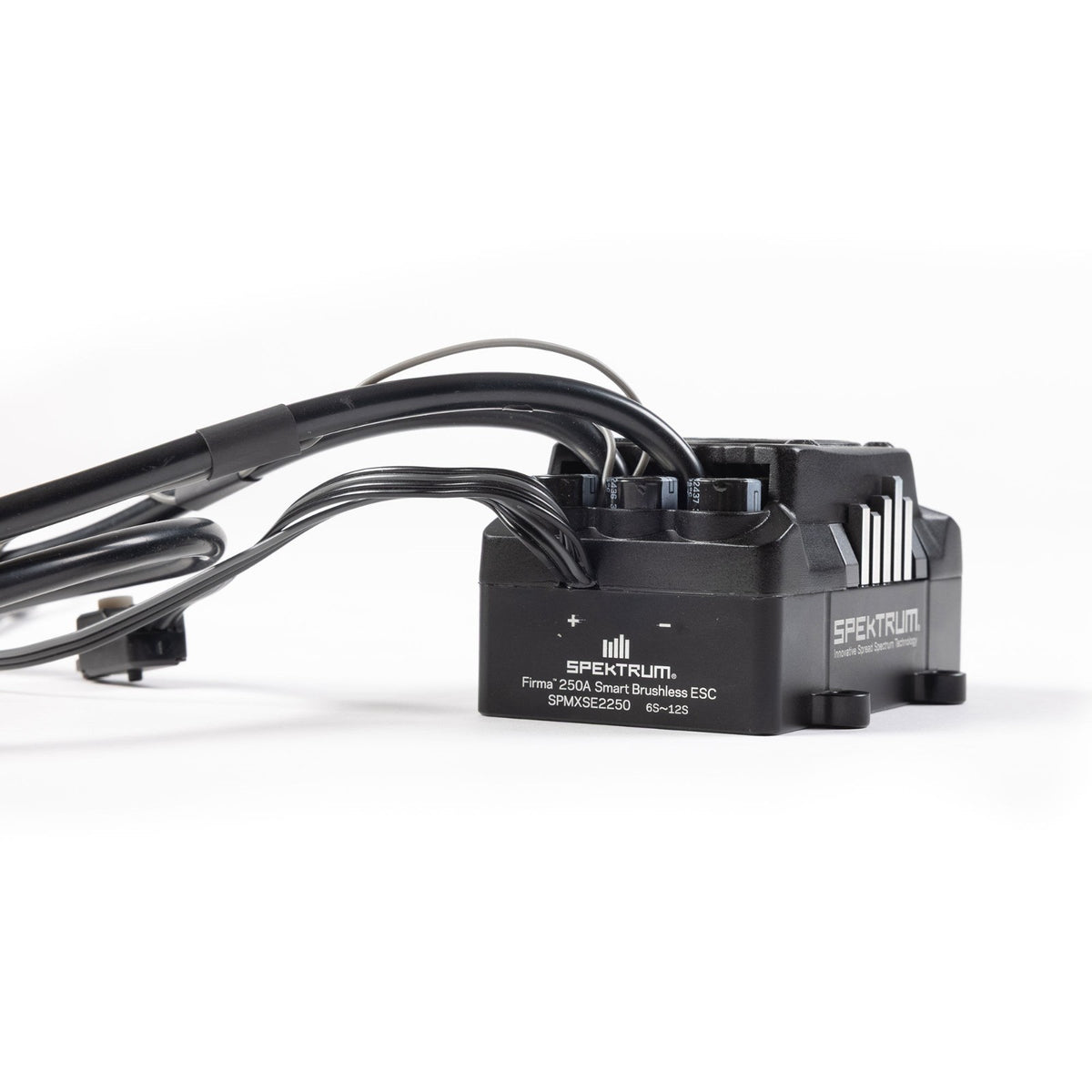

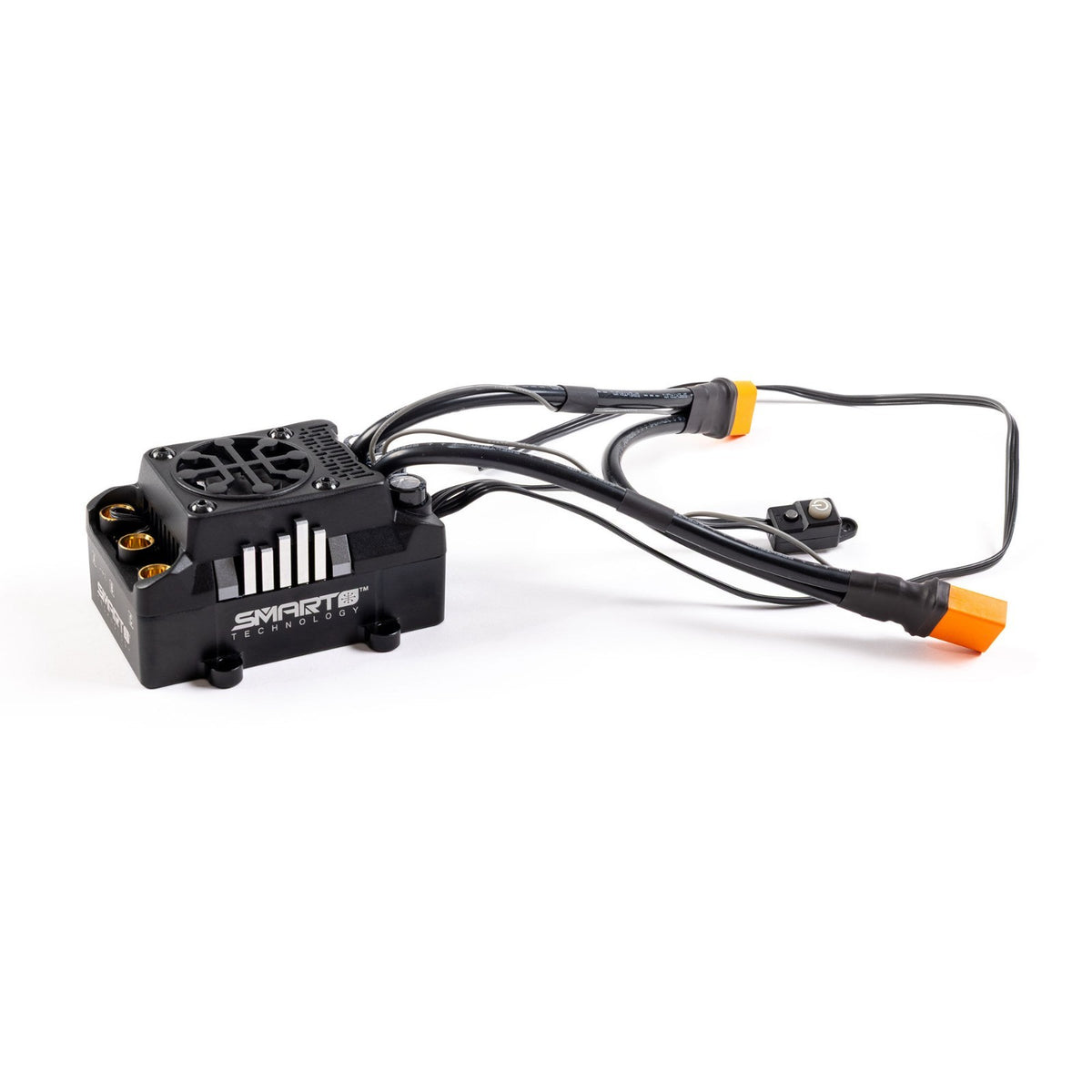

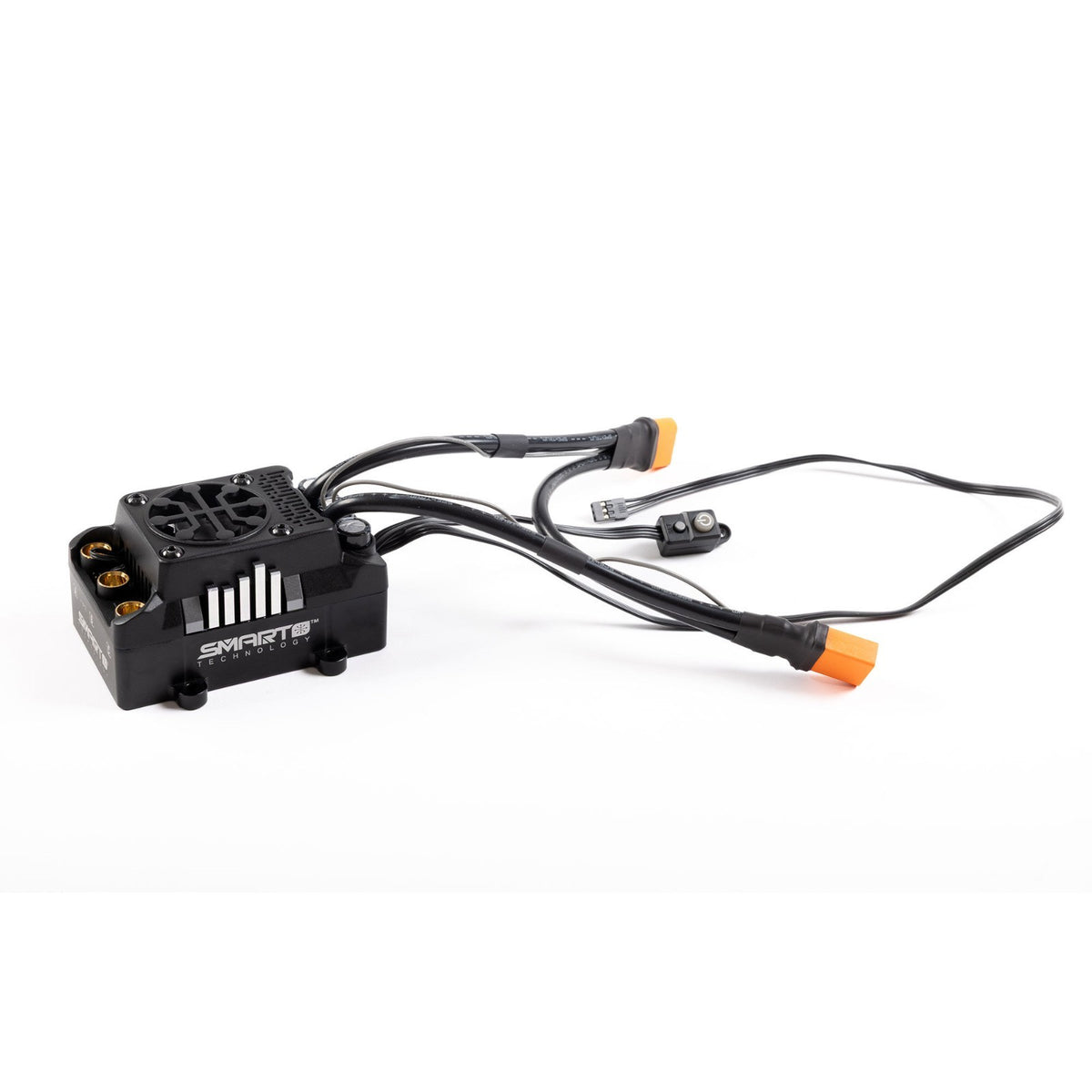

Spektrum SPMXSE2250 – Firma 250A Brushless Smart ESC, 6S–12S, Dual IC5

Take control of high-power 1/5-scale vehicles with the Spektrum Firma 250A Smart ESC. Designed for demanding 6S–12S LiPo applications, this sensorless brushless ESC combines high current capability with Spektrum Smart telemetry, allowing real-time operating data to be sent directly to a compatible Spektrum transmitter.

Features

• Genuine Spektrum Firma Smart ESC
• Part Number: SPMXSE2250
• 250A continuous current
• 1600A peak current
• 6S–12S LiPo compatible
• Sensorless brushless operation
• Designed for 1/5-scale surface vehicles
• Spektrum Smart one-wire telemetry
• Real-time telemetry including battery voltage, temperature, RPM and capacity
• Adjustable 6.0V / 7.4V / 8.4V BEC at 8A
• Built-in cooling fan
• Aluminum heat sink
• Waterproof design*
• Programmable through the ESC buttons, Smart Programming Box, or SmartLink
• Automatic LiPo low-voltage cutoff
• Over-current, thermal and failsafe protection

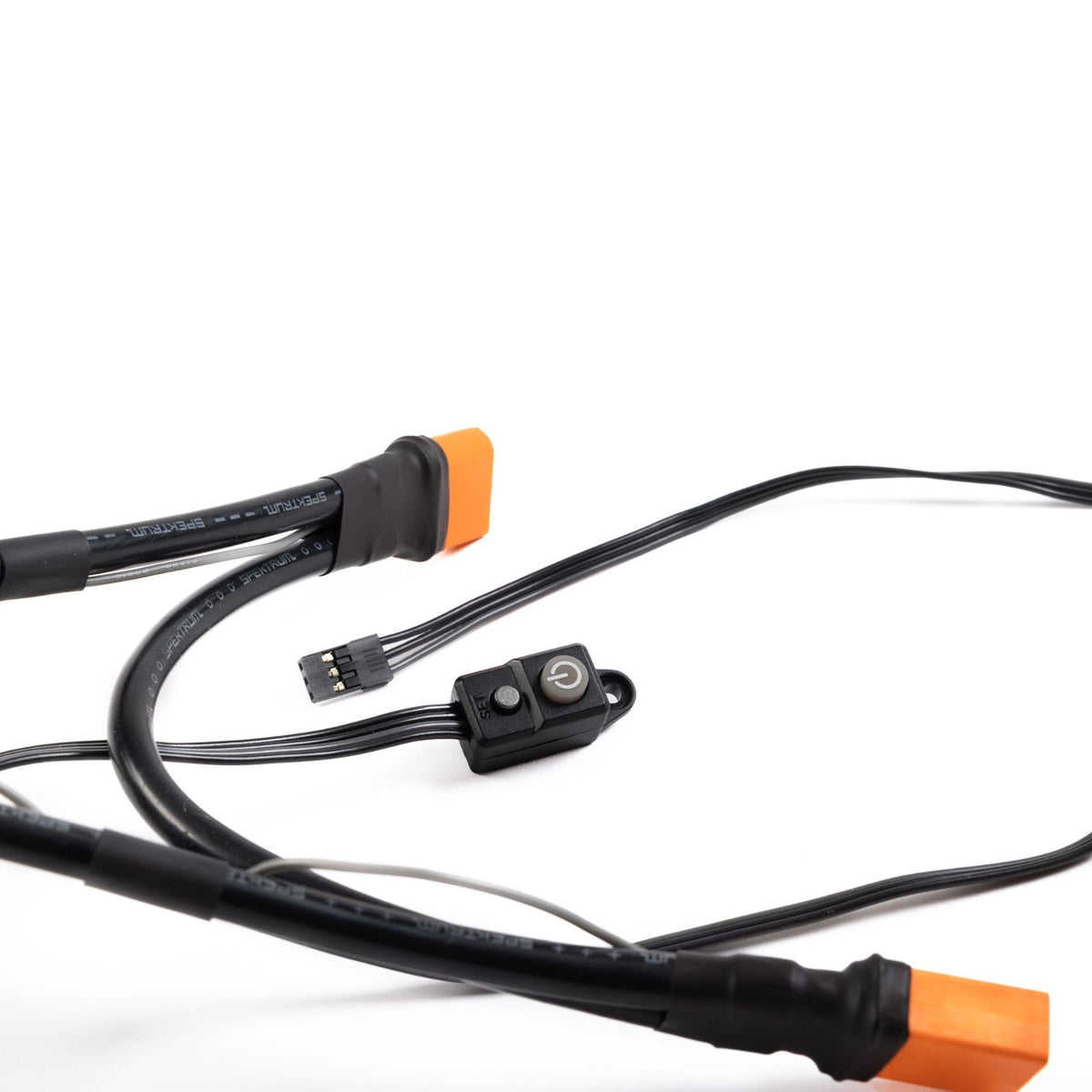

• Ready to install with Dual IC5 battery connectors
• 8mm female bullet motor connectors

Specifications

• Brand: Spektrum
• Part Number: SPMXSE2250
• ESC Type: Firma Smart Brushless
• Motor Type: Sensorless Brushless
• Continuous Current: 250A
• Peak Current: 1600A
• Input: 6S–12S LiPo
• BEC: 6.0V / 7.4V / 8.4V adjustable @ 8A
• Battery Connector: Dual IC5
• Motor Connector: 8mm Female Bullet
• Dimensions: 94.2 × 59.3 × 50.5mm
• Weight: 496g
• Cooling: Built-in fan

What's Included

• 1x Spektrum Firma 250A Brushless Smart ESC
• Spektrum Smart sticker sheet
• Product manual

Required to Complete

• Compatible Spektrum transmitter
• Compatible Spektrum surface receiver
• 1–2 Spektrum Smart LiPo batteries, depending on the vehicle/setup

Important: This is an ESC only; motor, transmitter, receiver and batteries are not included.
