Description

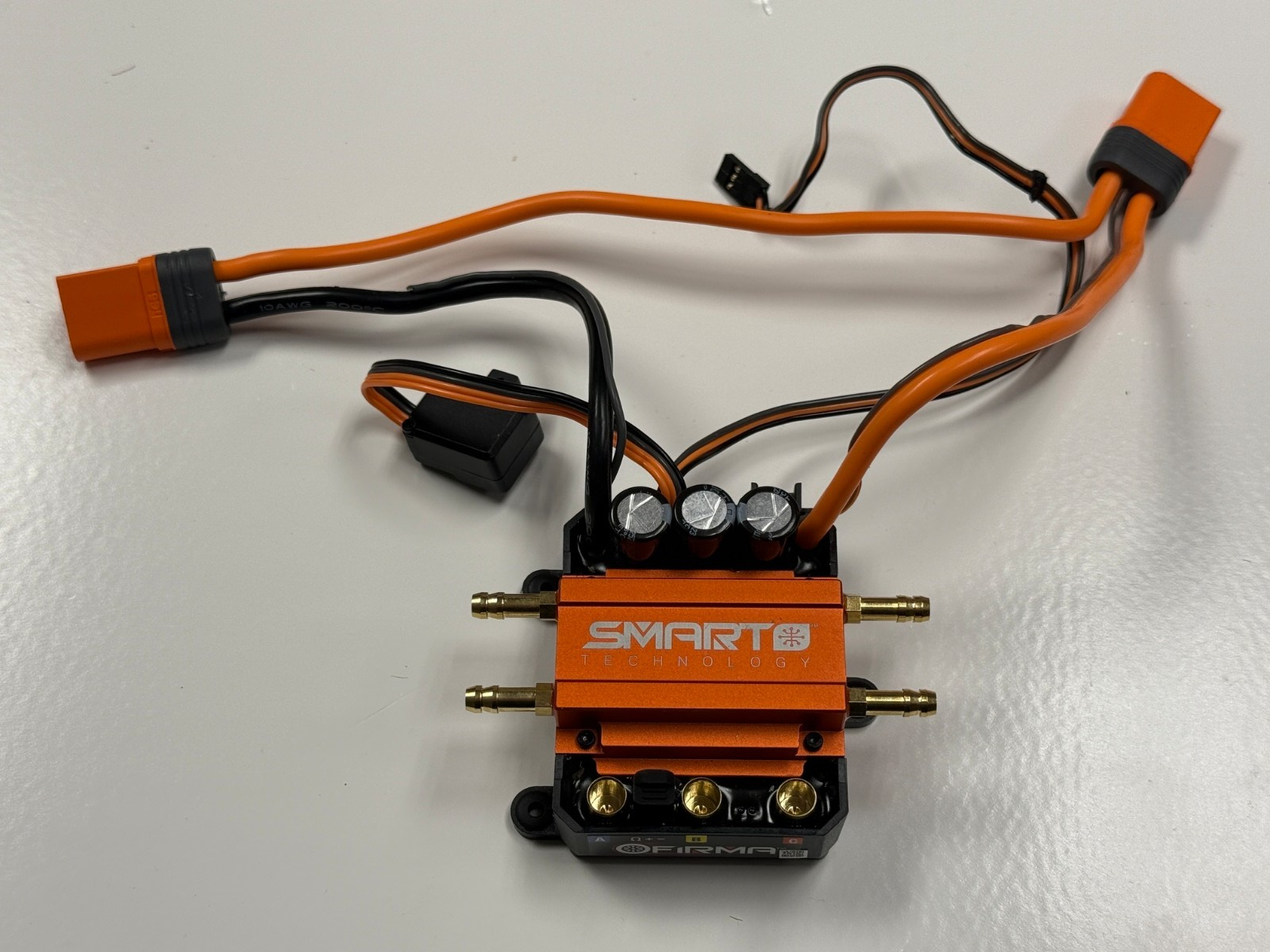

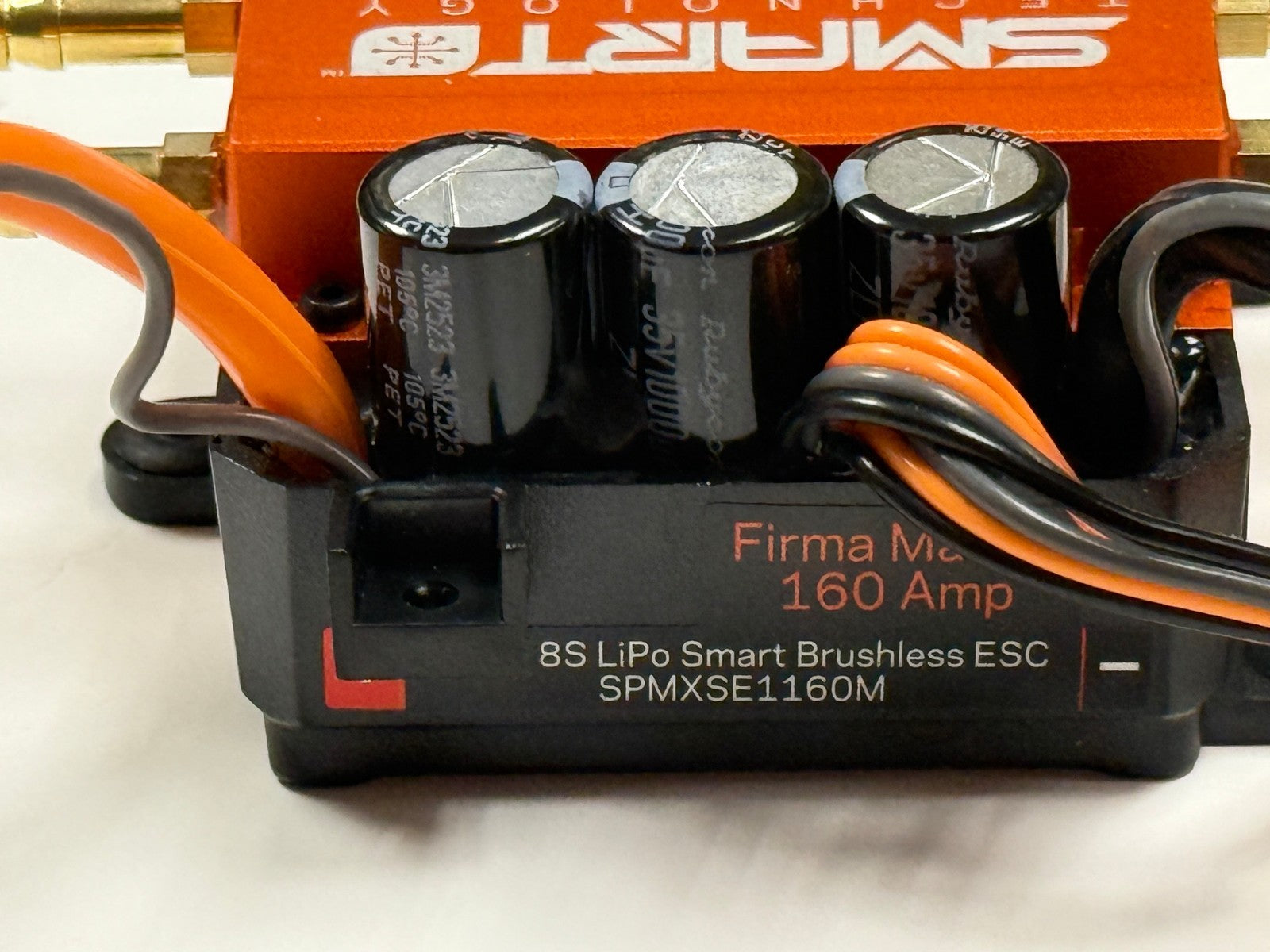

Power your high-performance RC boat with the Spektrum Firma 160A Smart Brushless Marine ESC. Designed for demanding marine applications, this waterproof ESC supports 3S–8S LiPo power and delivers up to 160 amps of continuous current.

Spektrum Smart technology provides real-time telemetry data—including RPM, ESC temperature, battery voltage, and remaining capacity—through a compatible Spektrum Smart receiver and transmitter. Its single-wire telemetry design eliminates the need for additional sensors, modules, and wiring.

Key Features:

• 160A continuous-current capability
• Supports 3S–8S LiPo batteries
• Dual high-temperature IC5 battery connectors
• IC5 connectors are backward-compatible with EC5 connectors
• Spektrum Smart all-in-one telemetry
• Powerful 32-bit ARM M4 processor
• Waterproof construction for marine use
• Multiple water-cooling jackets and inlets
• 6V/8A switch-mode BEC
• Forward and reverse operation
• Automatic LiPo low-voltage cutoff
• Over-current, thermal, and failsafe protection
• Programmable by button, Smart ESC Programming Box, or SmartLink USB
• Firmware update capability
• Aluminum heat sink
• Rugged plastic housing with mounting tabs
• Ready to install—no soldering required

Specifications:

• Type: Brushless marine ESC with dual battery connectors
• Continuous Current: 160A
• Input Voltage: 11.1–29.6V (3S–8S LiPo)
• BEC: 6V/8A switch-mode
• Battery Connectors: Dual IC5
• Motor Connectors: 6.5mm bullets
• Battery Wire: 10 AWG, 7.9 inches
• Dimensions: 3.7 × 3.5 × 1.4 inches
• Weight: 9.9 oz
• Programmable: Yes
• Forward/Reverse: Yes
• Brakes: No

Package Includes:

• Spektrum Firma 160A Smart Marine ESC
• Spektrum Smart sticker sheet
• Product manual
