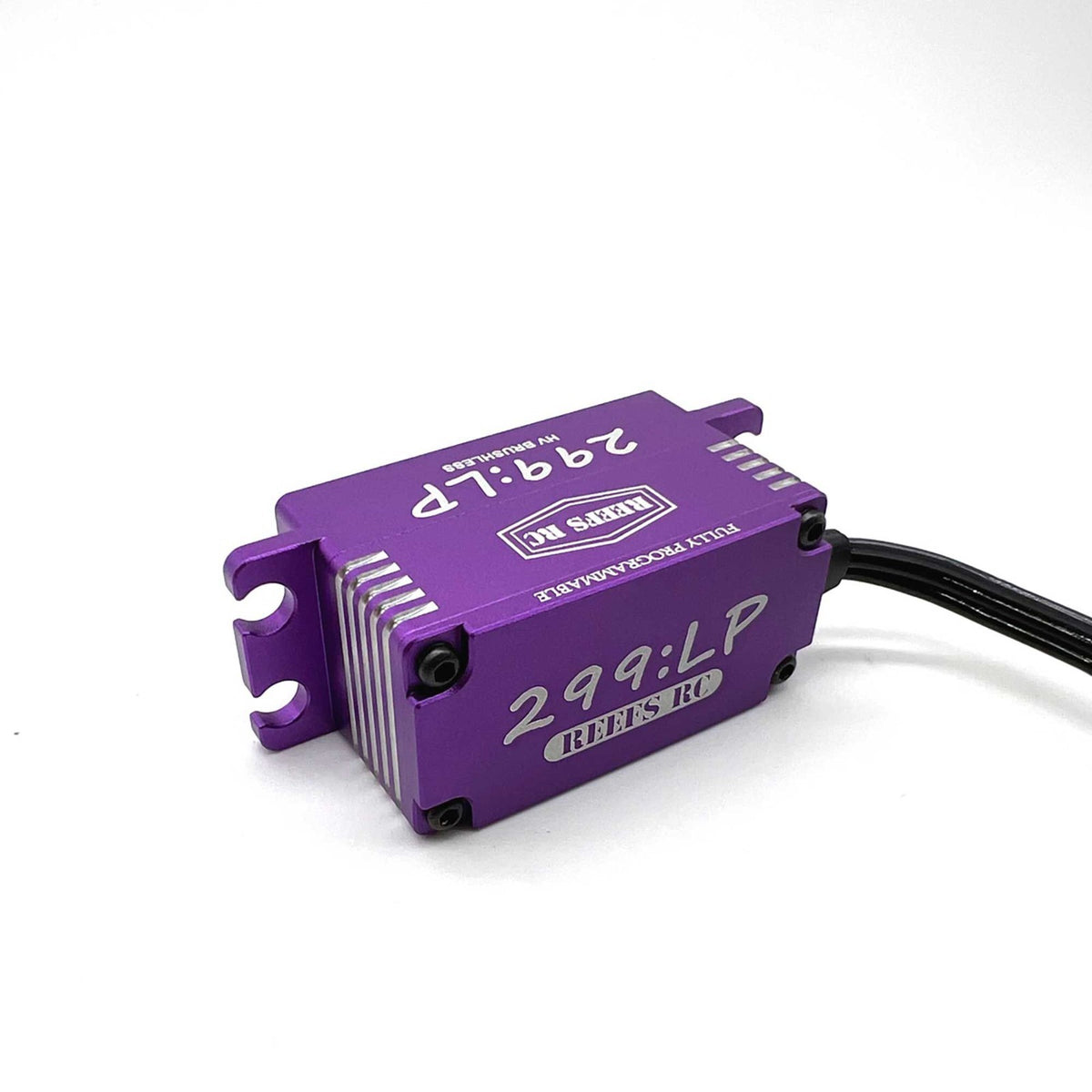

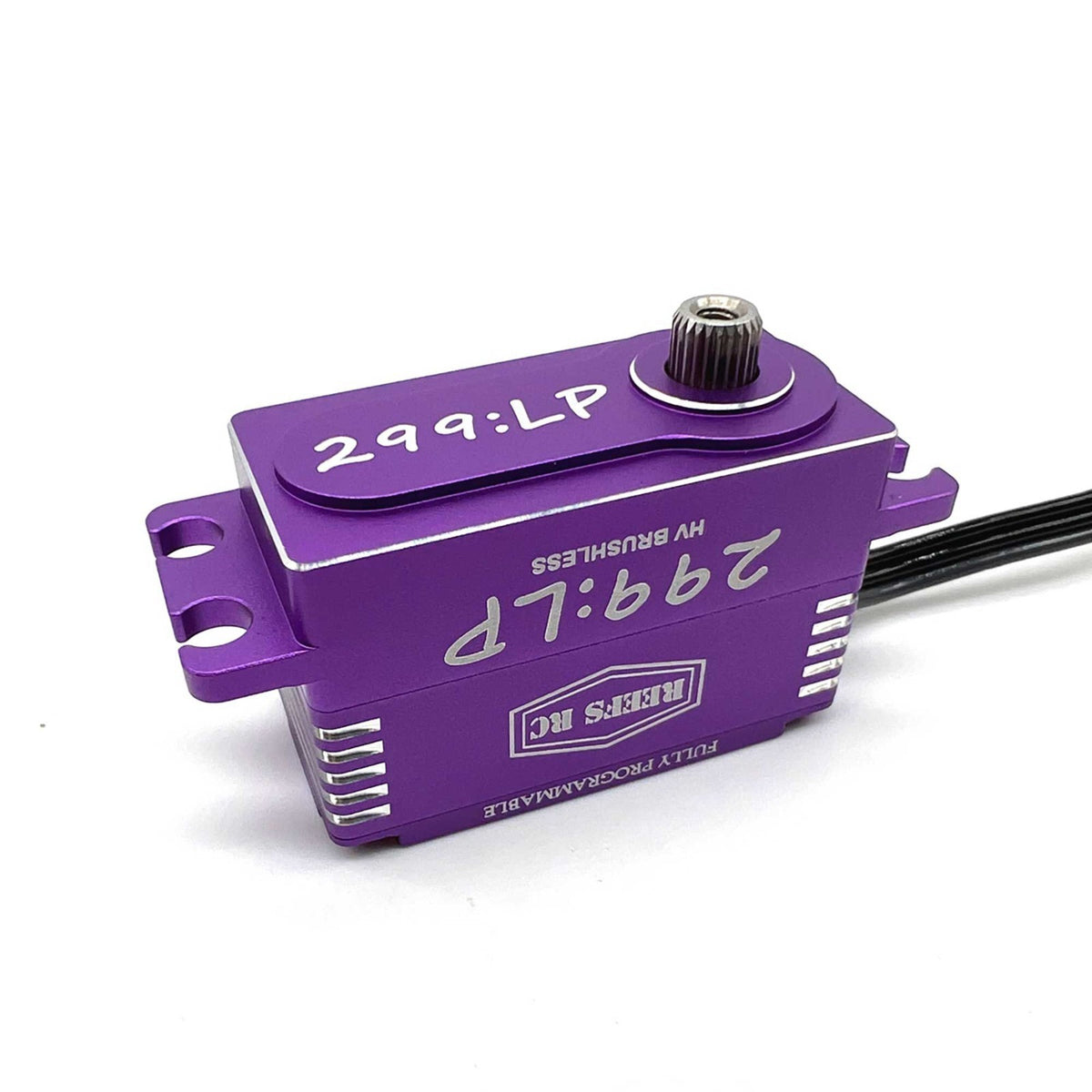

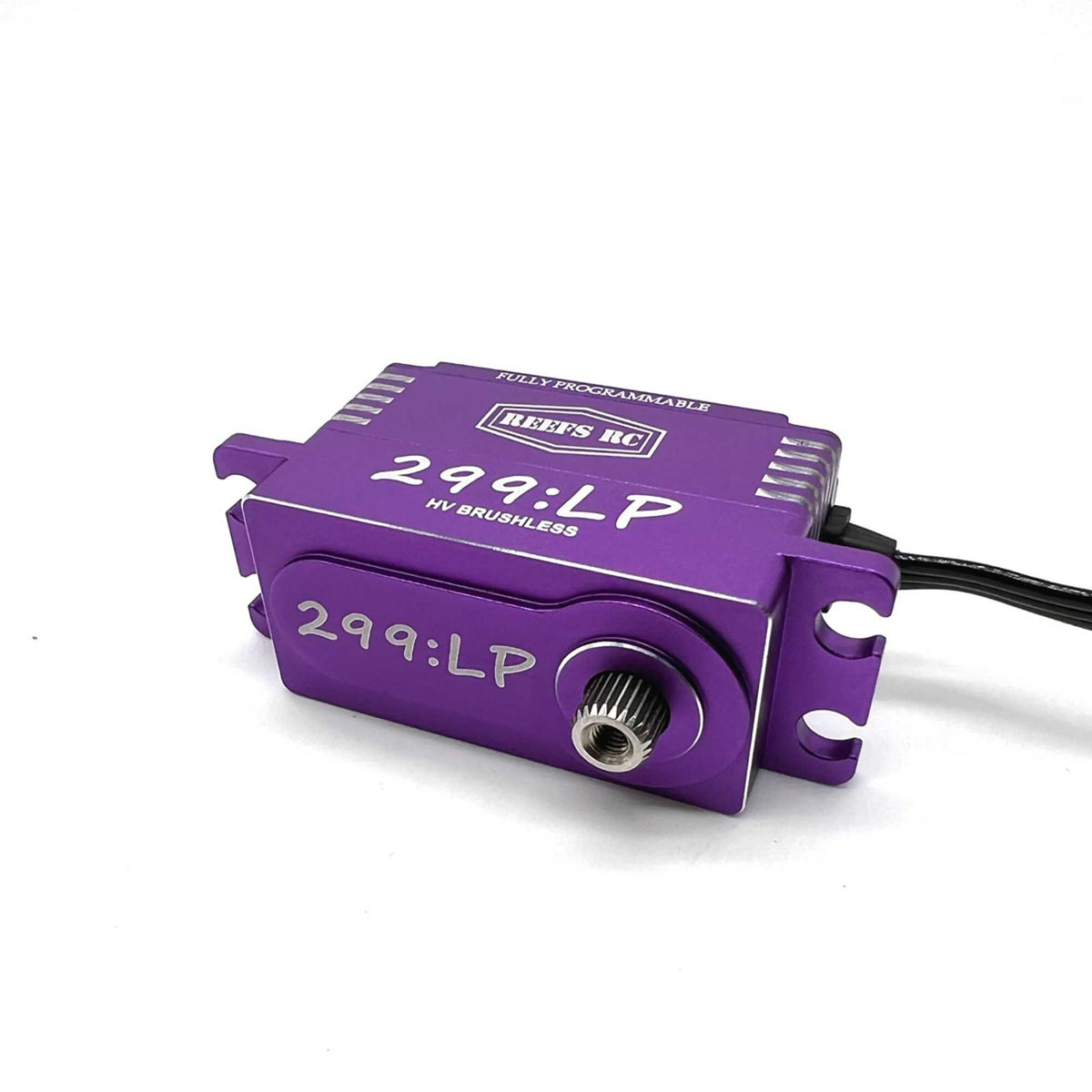

The REEFS RC 299LP Special Edition Purple Servo delivers high speed and reliable torque in a compact, low-profile design. Built for RC racers, drift cars, and other performance applications, it features a brushless motor, steel internal gears, and a CNC-machined aluminum case with a distinctive purple anodized finish.

Key Features

• High-speed brushless motor for responsive steering

• Low-profile design for installations with limited space

• Purple anodized CNC-machined aluminum case with heat-dissipating side fins

• Steel internal gears for strength and durability

• Water-resistant construction

• Magnetic angle sensor for precise positioning

• Pulse-width modulation (PWM) control

• Programmable operation using REEFS software and the optional REEFS LINK

• 25-tooth (25T) output spline

• Dual ball bearings

Specifications

• Brand: REEFS RC

• Part Number: SEHREEFS145

• Model: 299LP Special Edition Purple

• Motor Type: Brushless

• Operating Voltage: 4.8–8.4V

• Torque:

  • 278 oz-in at 6.0V

  • 299 oz-in at 7.4V

  • 313 oz-in at 8.4V

• Speed:

  • 0.07 sec/60° at 6.0V

  • 0.06 sec/60° at 7.4V

  • 0.05 sec/60° at 8.4V

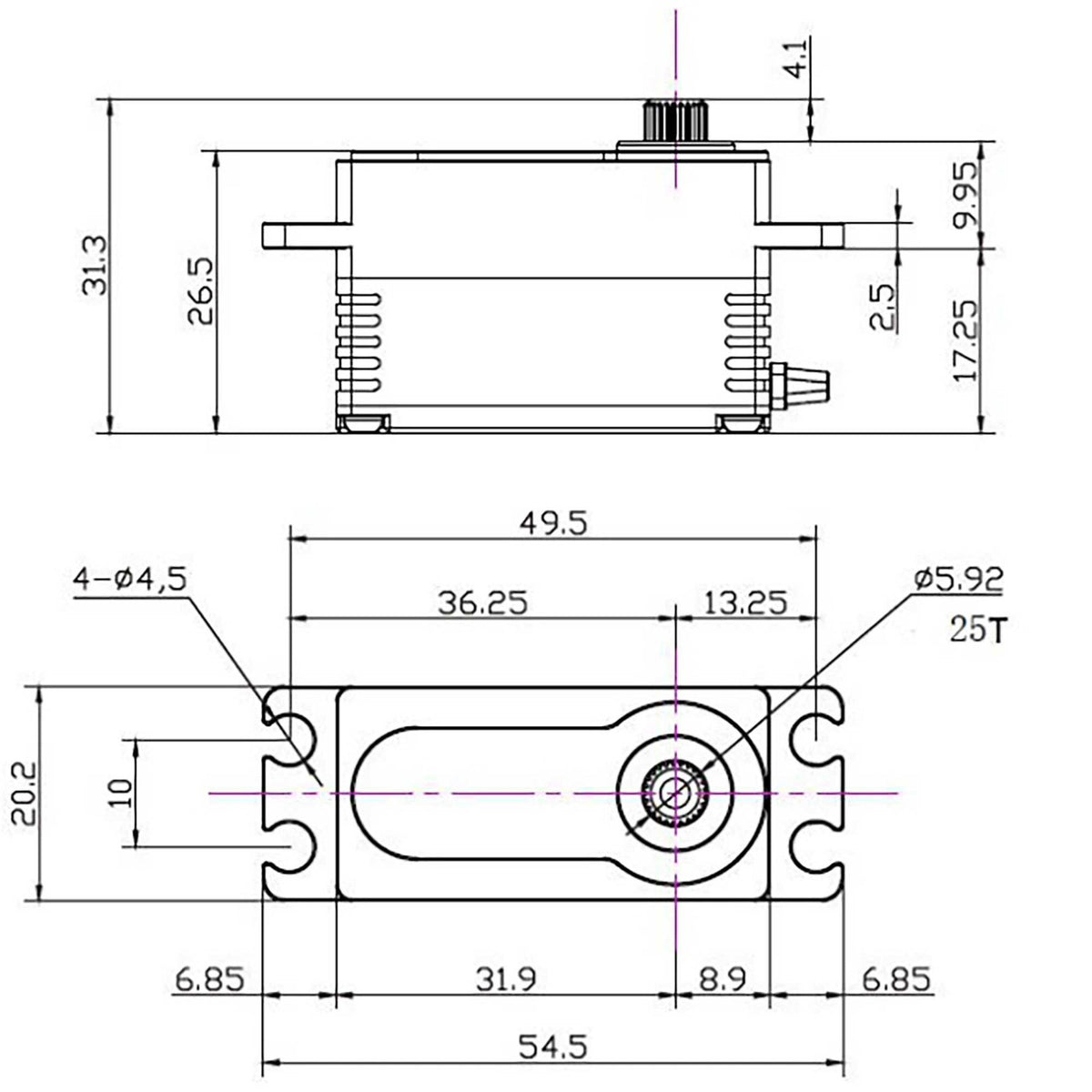

• Dimensions: 1.60 × 0.79 × 1.00 in (40.8 × 20.2 × 26.5 mm)

• Weight: 2.0 oz (57.2 g)

• Output Spline: 25T (ProTek/Futaba)

• Deadband: 2 µs

Package Includes

• (1) REEFS RC 299LP Special Edition Purple Servo

• Servo horns and mounting hardware

Please Note: REEFS LINK is required for programming and is sold separately. Confirm your vehicle's servo dimensions, spline requirements, and operating voltage before installation.

Please verify your model and part number before ordering.
