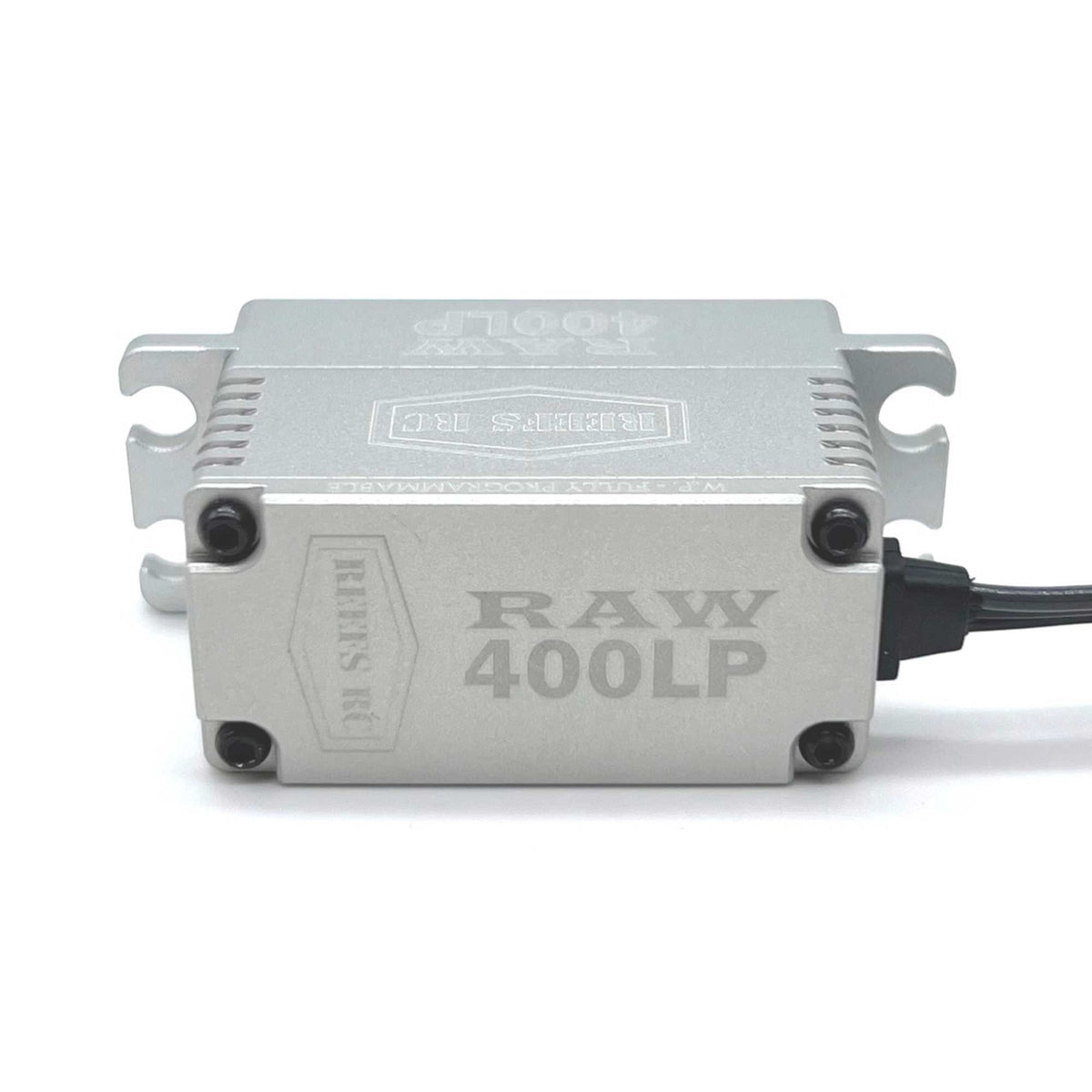

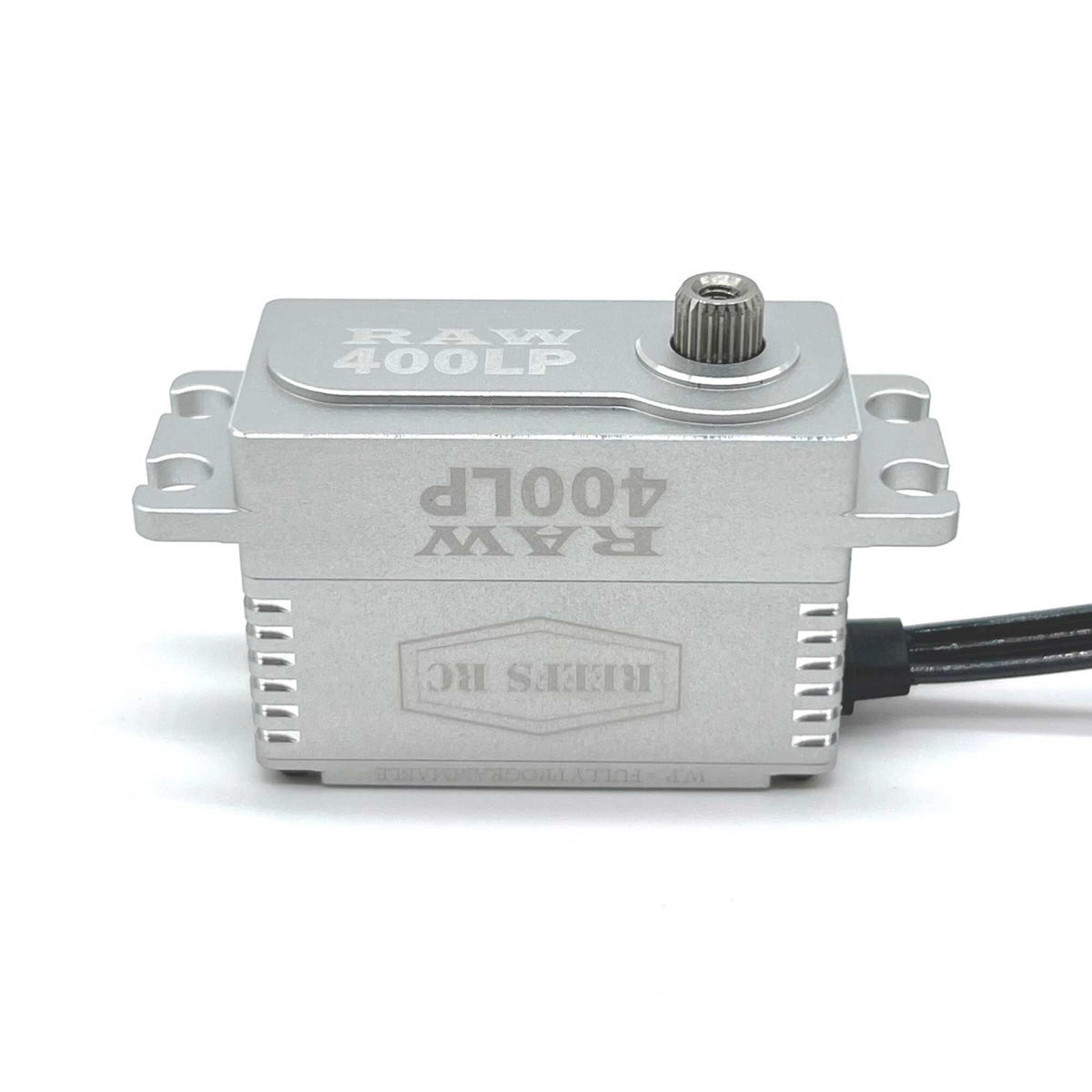

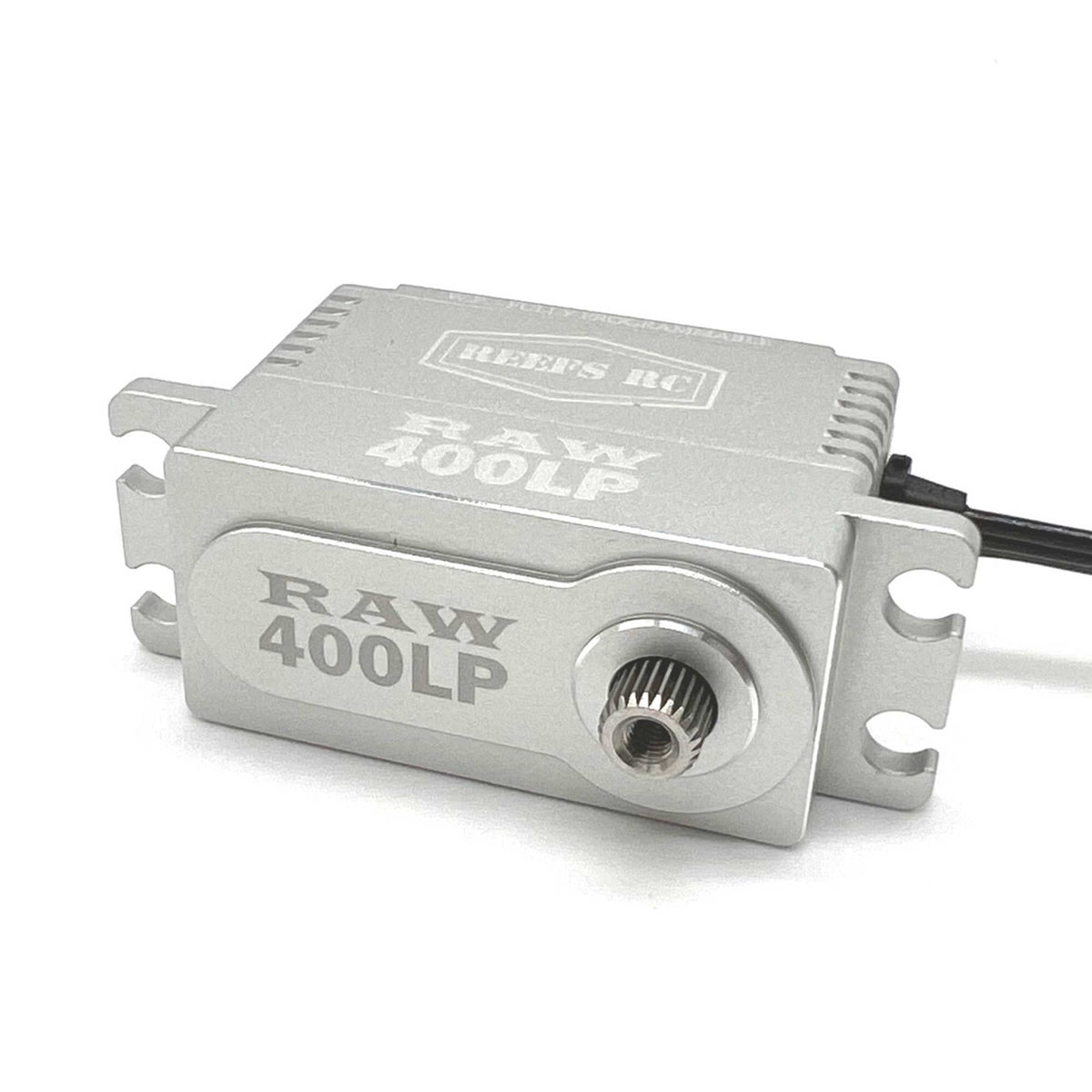

The REEFS RC RAW 400 LP is a high-speed, low-profile digital servo designed for RC vehicles that need reliable steering performance in a compact installation. Featuring a brushless motor, steel gears, and a CNC-machined aluminum case, this servo is built for demanding RC crawling and off-road applications.

Key Features

• High speed: Up to 0.065 seconds per 60° at 8.4V

• High torque: Up to 460 oz-in at 8.4V

• Low-profile design for installations with limited clearance

• IP67-rated waterproof protection with a seven-point sealing system

• Brushless motor for responsive performance

• Steel internal gears for durability

• CNC-machined aluminum case

• Magnetic angle sensor for precise positioning

• Programmable operation using REEFS software and the optional REEFS USB LINK

• 25-tooth (25T) output spline

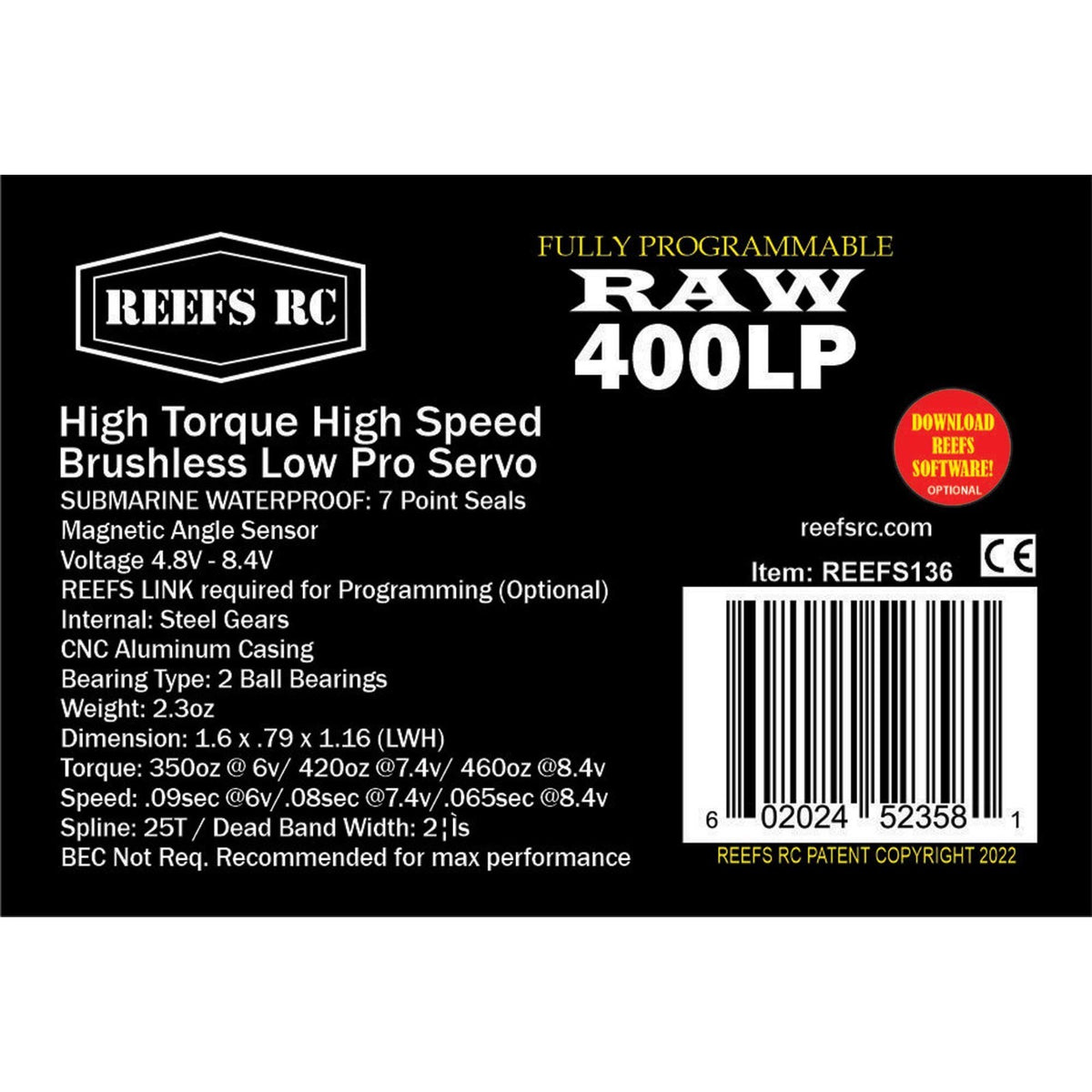

Specifications

• Brand: REEFS RC

• Part Number: SEHREEFS136

• Model: RAW 400 LP

• Operating Voltage: 4.8–8.4V

• Torque:

  • 350 oz-in at 6.0V

  • 420 oz-in at 7.4V

  • 460 oz-in at 8.4V

• Speed:

  • 0.09 sec/60° at 6.0V

  • 0.08 sec/60° at 7.4V

  • 0.065 sec/60° at 8.4V

• Dimensions: 1.60 × 0.79 × 1.16 in

• Weight: 2.3 oz

• Bearings: Dual ball bearings

• Deadband: 2 µs

• Output Spline: 25T

Package Includes

• (1) REEFS RC RAW 400 LP Servo

Please Note: REEFS USB LINK is required for programming and is sold separately. A suitable BEC is recommended for maximum performance.

Please verify your model and part number before ordering.
