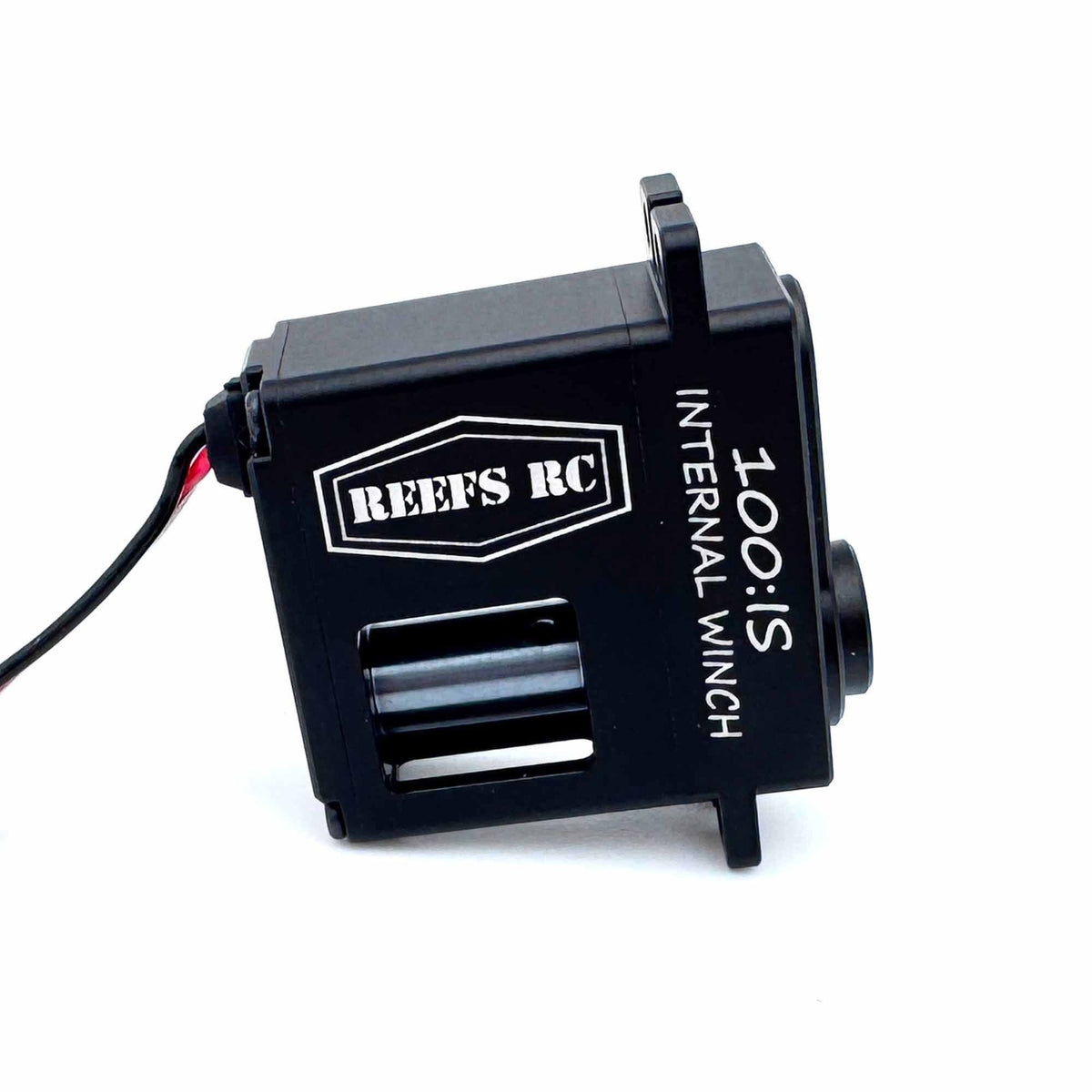

Equip your RC crawler with the REEFS RC 100 Mini Internal Spool Servo Winch, a compact, high-speed brushless winch designed for scale recovery and trail adventures. Its integrated spool keeps the winch line neatly contained, while the built-in preprogrammed controller simplifies installation and operation.

Key Features

• High-speed brushless servo winch for reliable recovery performance

• Built-in preprogrammed winch controller

• Internal machined spool with a coated finish

• Approximately 6 feet of 0.8 mm synthetic winch line

• Scale recovery hook included

• IP67 waterproof protection with six-point sealing

• CNC-machined aluminum housing

• Steel internal gears for durability

• Three ball bearings

• Programmable using REEFS software and the optional REEFS LINK

Specifications

• Brand: REEFS RC

• Part Number: SEHREEFS281

• Model: 100 Mini Internal Spool Servo Winch

• Motor Type: Brushless

• Operating Voltage: 4.8–8.4V

• Torque:

  • 97 oz-in at 6.0V

  • 111 oz-in at 7.4V

  • 132 oz-in at 8.4V

• Speed:

  • 0.093 sec/60° at 6.0V

  • 0.075 sec/60° at 7.4V

  • 0.067 sec/60° at 8.4V

• Dimensions: 1.20 × 0.55 × 1.22 in (30 × 14 × 31 mm)

• Weight: 1.19 oz (34 g)

• Bearings: Three ball bearings

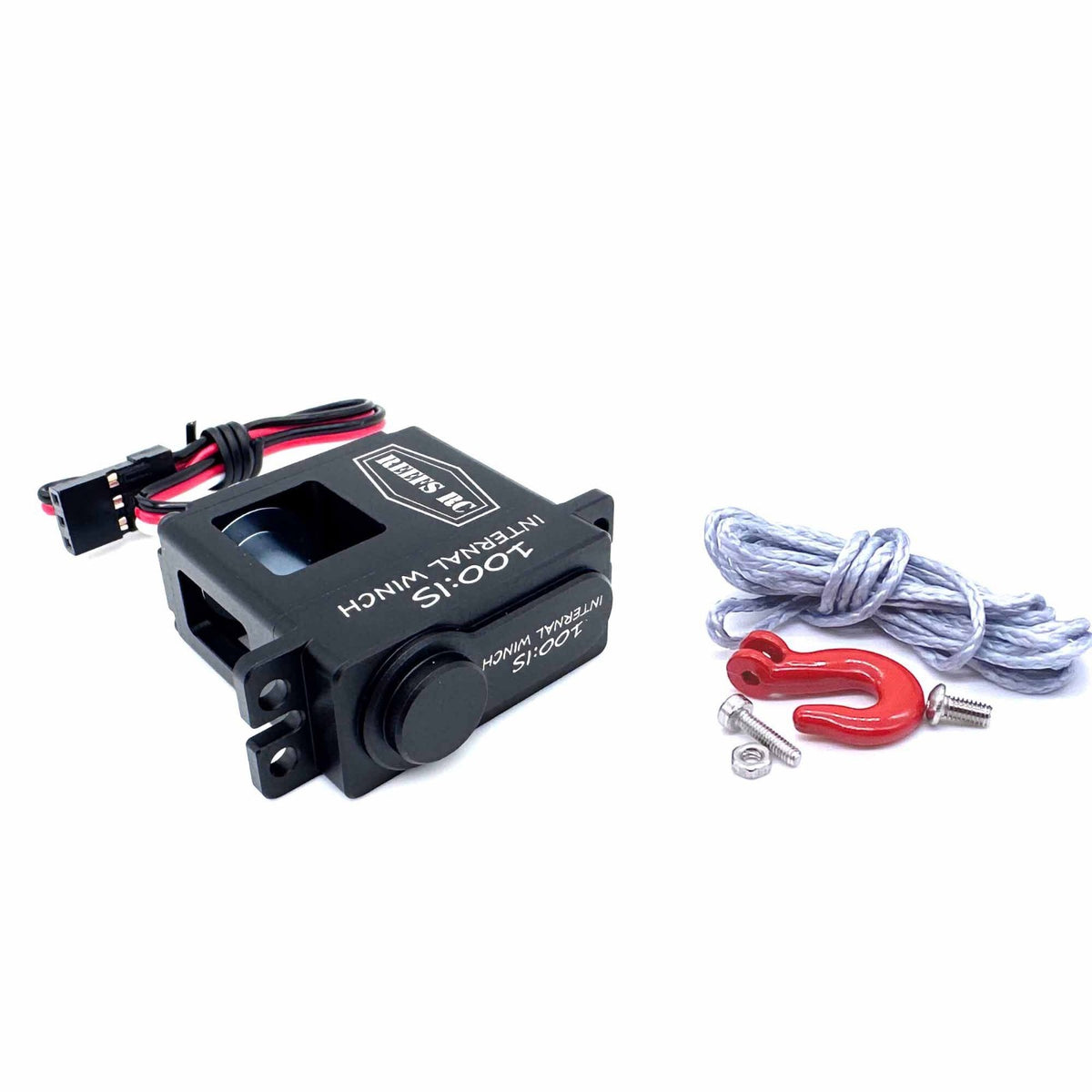

Package Includes

• (1) REEFS RC 100 Mini Internal Spool Servo Winch

• (1) Internal machined spool

• (1) Approximately 6-foot synthetic winch line

• (1) Scale recovery hook

Important Notes

• The winch includes a built-in controller for operation with a compatible receiver.

• REEFS LINK is required for programming and sold separately.

• A suitable BEC is recommended for maximum performance.

• Confirm mounting space and receiver compatibility before installation.

Please verify your model and part number before ordering.
