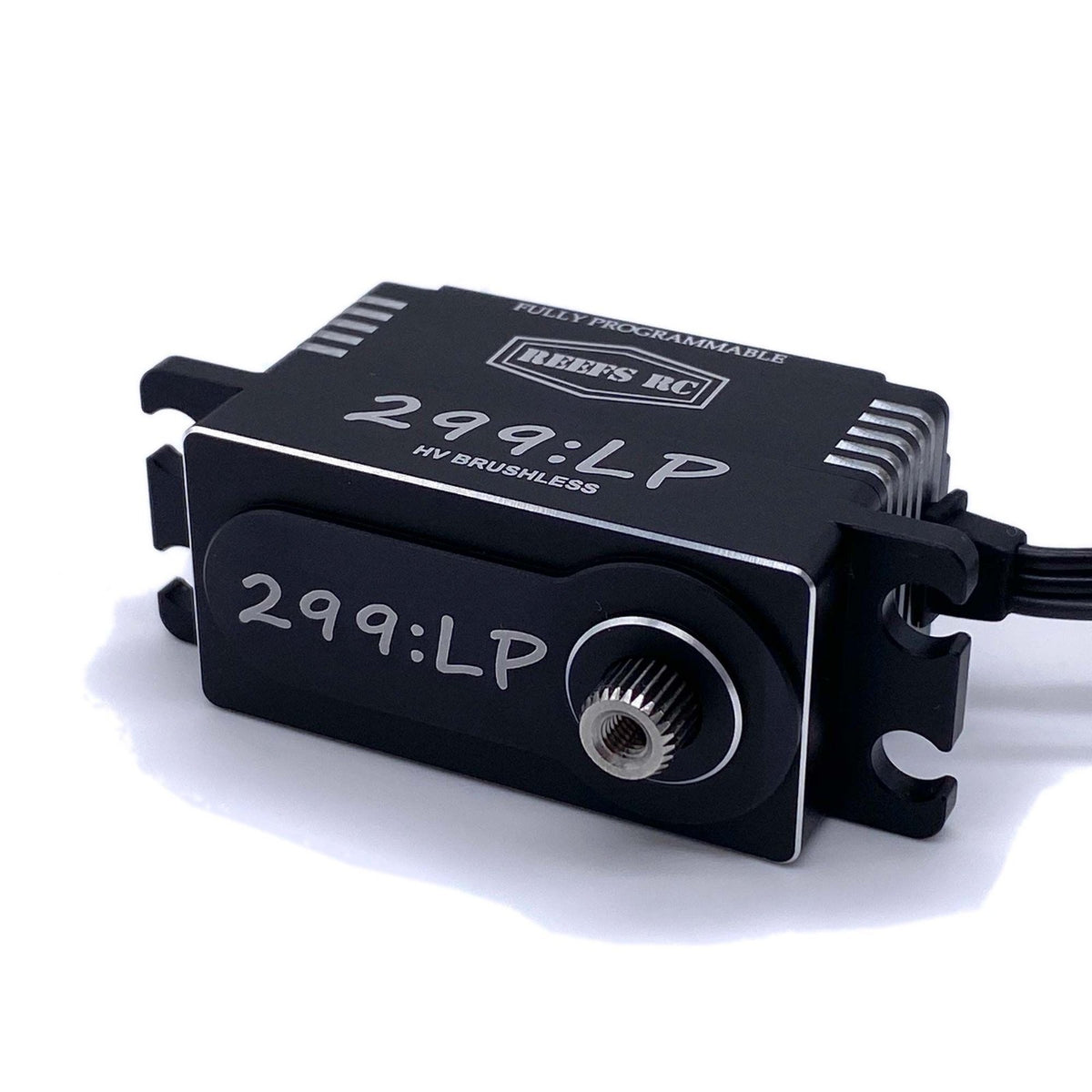

The REEFS RC 299LP is a high-speed, high-torque low-profile brushless servo designed for RC applications where precise control and compact dimensions are essential. Featuring a rugged CNC-machined aluminum case, steel internal gears, and waterproof sealing, this servo is built for dependable performance in demanding RC environments.

Key Features

• High-speed, high-torque brushless motor

• Low-profile design for installations with limited clearance

• Black CNC-machined aluminum housing

• Steel internal gears for durability

• Seven-point waterproof sealing

• Magnetic angle sensor for precise positioning

• Pulse-width modulation (PWM) control

• Programmable using REEFS software and the optional REEFS LINK

• Dual ball bearings

• 25-tooth (25T) output spline

Specifications

• Brand: REEFS RC

• Part Number: SEHREEFS24

• Model: 299LP

• Color: Black

• Motor Type: Brushless

• Operating Voltage: 4.8–8.4V

• Torque:

  • 278 oz-in at 6.0V

  • 299 oz-in at 7.4V

  • 313 oz-in at 8.4V

• Speed:

  • 0.07 sec/60° at 6.0V

  • 0.06 sec/60° at 7.4V

  • 0.057 sec/60° at 8.4V

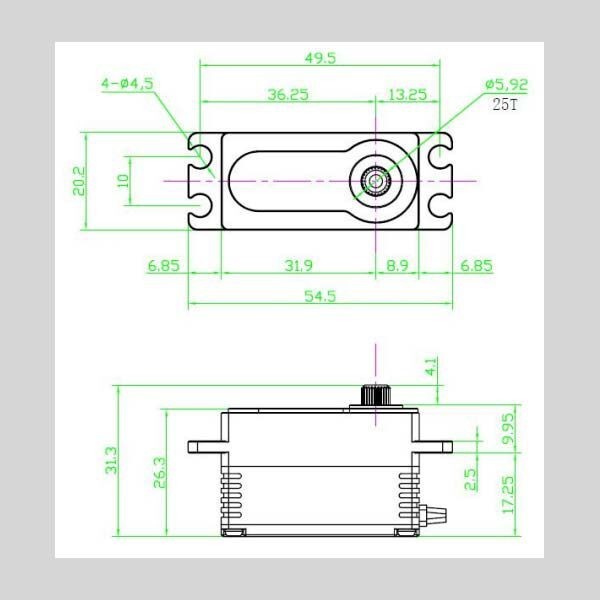

• Dimensions: 1.60 × 0.79 × 1.00 in (40.8 × 20.2 × 26.5 mm)

• Weight: 2.0 oz (57.2 g)

• Gears: Steel

• Bearings: Dual ball bearings

• Output Spline: 25T

• Deadband: 2 µs

Package Includes

• (1) REEFS RC 299LP Low-Profile Brushless Servo

Please Note: REEFS LINK is required for programming and is sold separately. Confirm your vehicle's servo dimensions, spline requirements, and operating voltage before installation.

Please verify your model and part number before ordering.
