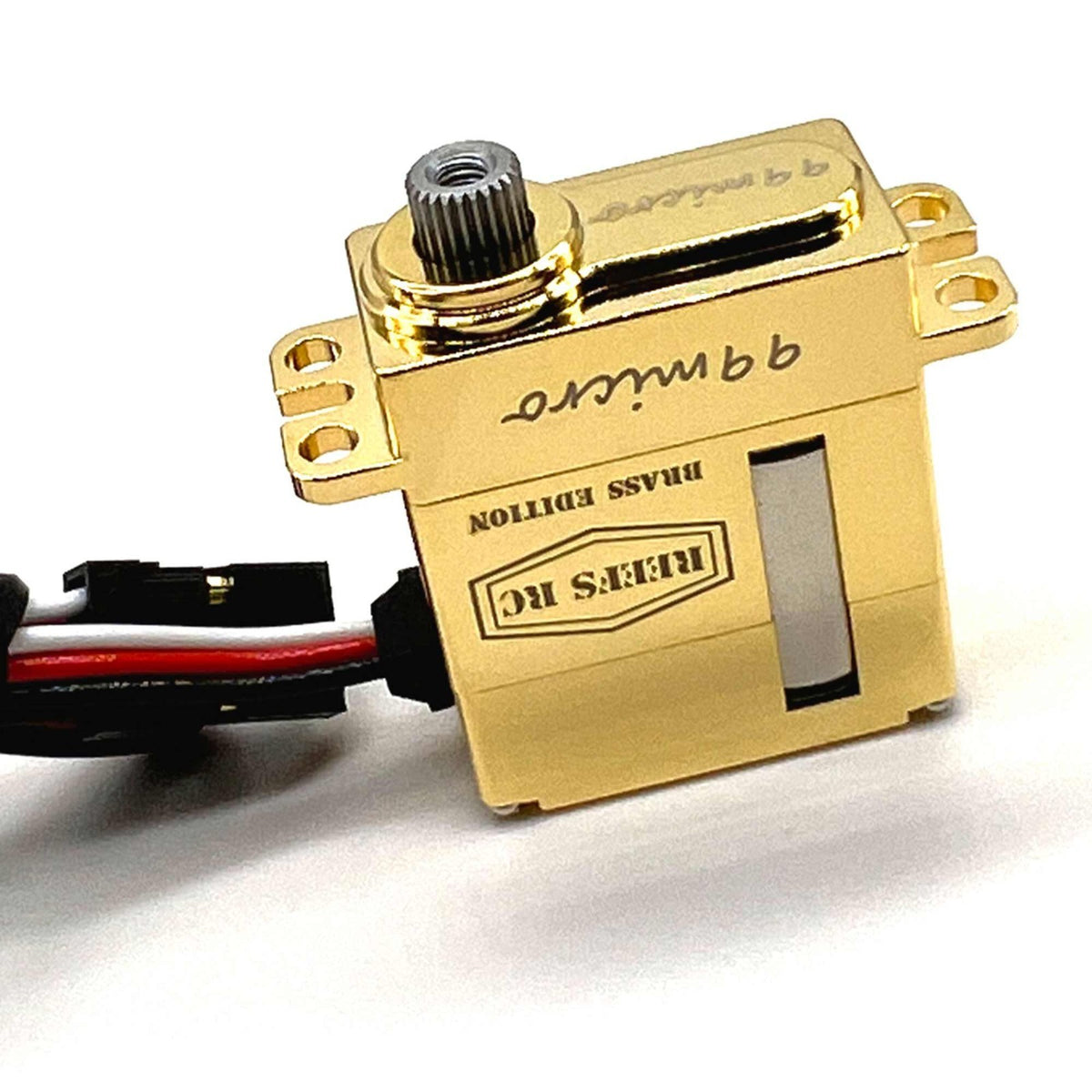

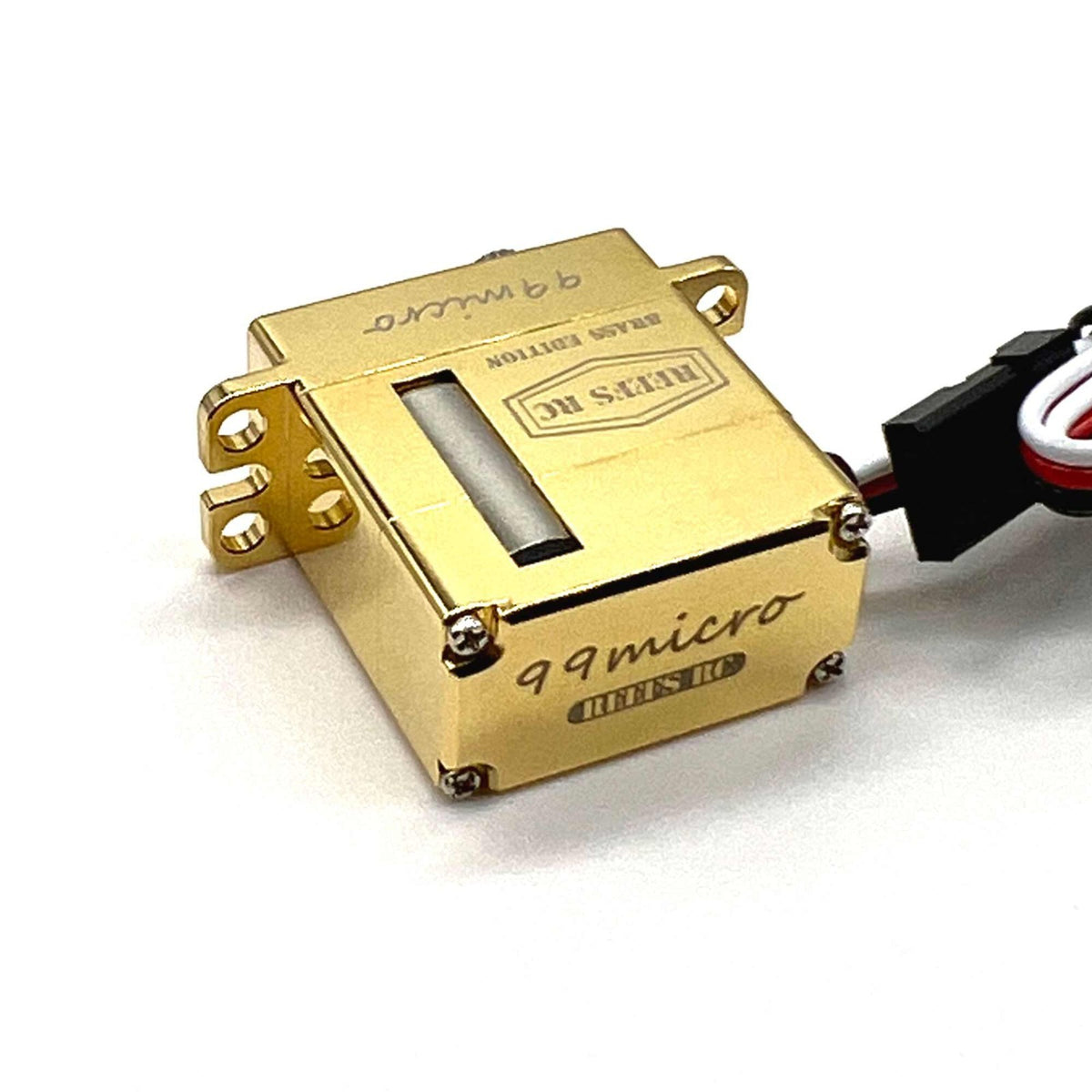

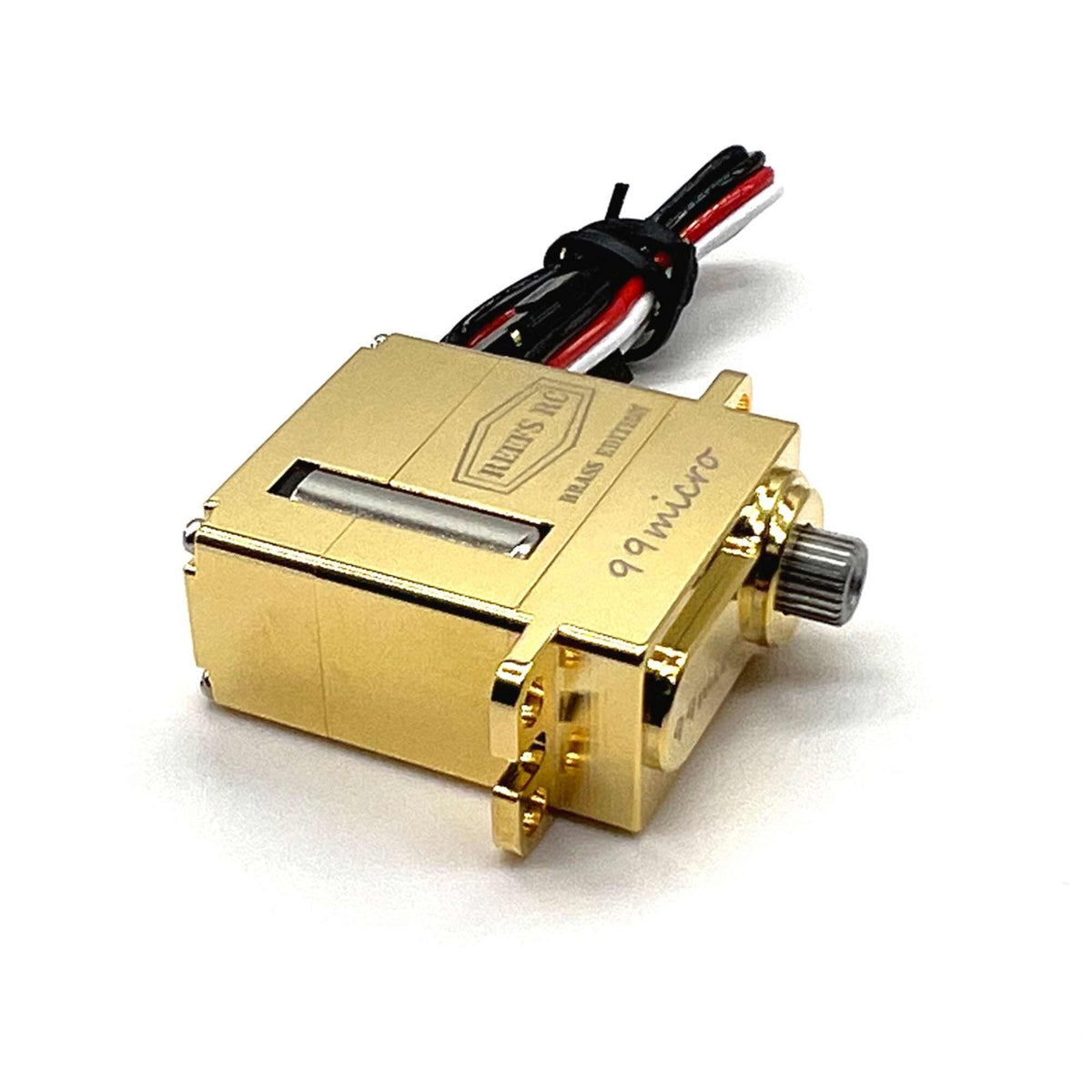

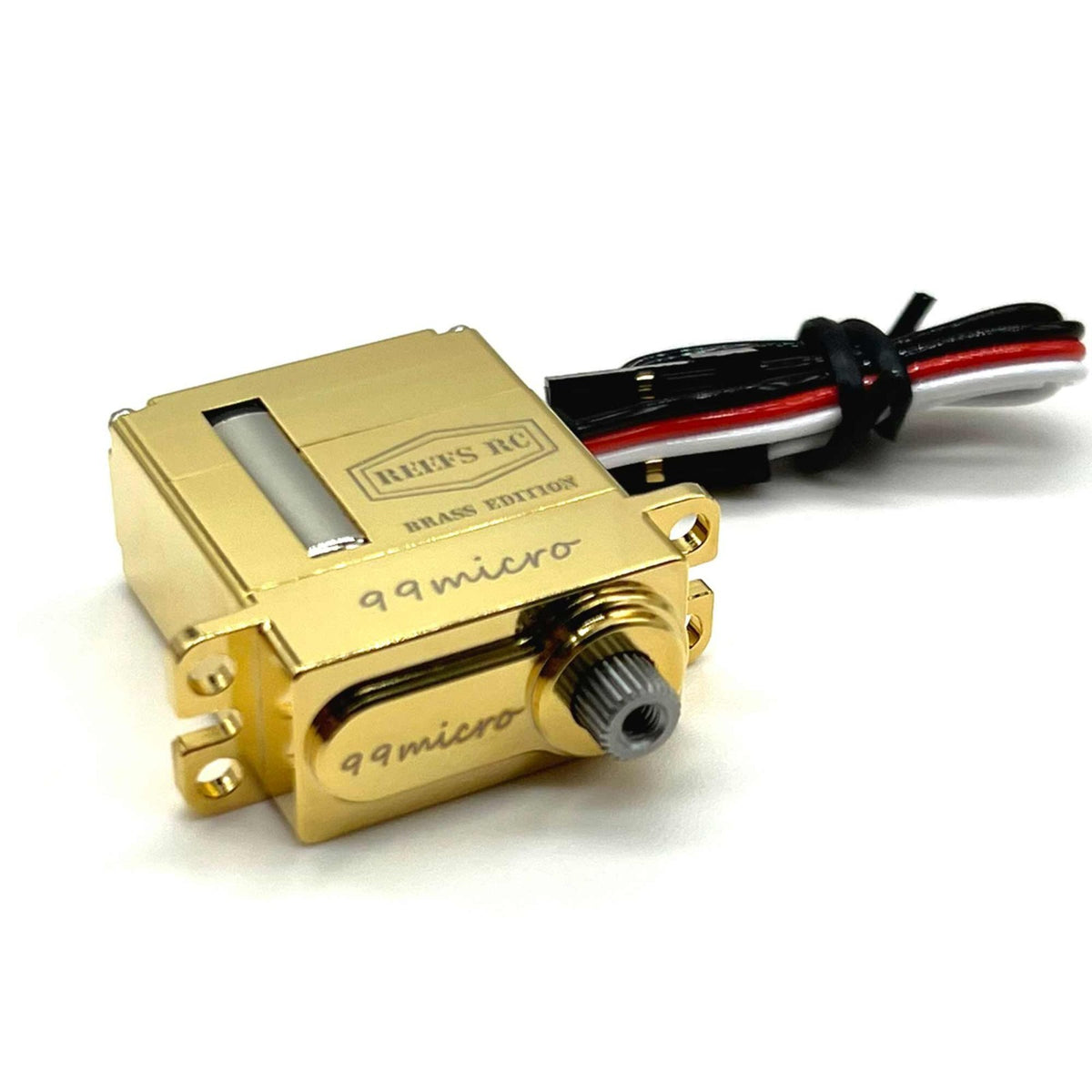

The REEFS RC 99Micro Brass Edition is a compact, high-torque digital servo designed for micro RC crawlers. Its brass housing adds weight for improved weight distribution in small-scale builds, while metal internal gears provide durability for demanding trail and crawling conditions.

Key Features

• Heavy CNC-machined brass housing

• High-torque performance in a compact micro-servo design

• Digital coreless motor for responsive steering

• Metal internal gears for durability

• Waterproof construction for challenging RC environments

• High-voltage operation up to 8.4V

• 25-tooth (25T) output spline

Specifications

• Brand: REEFS RC

• Part Number: SEHREEFS162

• Model: 99Micro Brass Edition

• Servo Type: Digital micro servo

• Motor: Coreless

• Operating Voltage: 6.0–8.4V

• Torque:

  • 89 oz-in at 6.0V

  • 99 oz-in at 7.4V

  • 115 oz-in at 8.4V

• Speed:

  • 0.11 sec/60° at 6.0V

  • 0.09 sec/60° at 7.4V

  • 0.08 sec/60° at 8.4V

• Gears: Metal

• Output Spline: 25T

Package Includes

• (1) REEFS RC 99Micro Brass Edition Servo

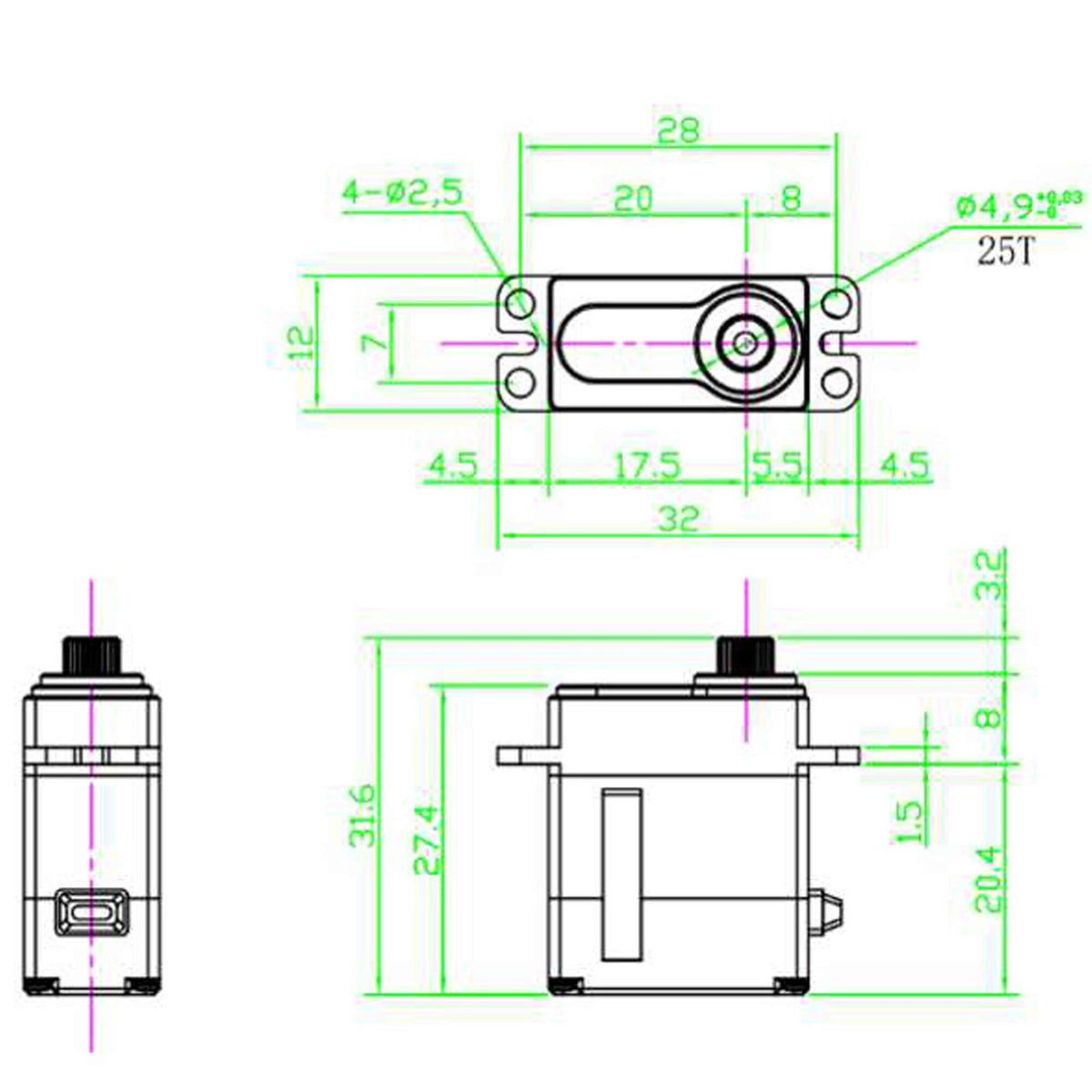

Please confirm mounting dimensions, spline compatibility, and voltage requirements before installation. Ensure your receiver or BEC supplies the correct voltage.

Please verify your model and part number before ordering.
