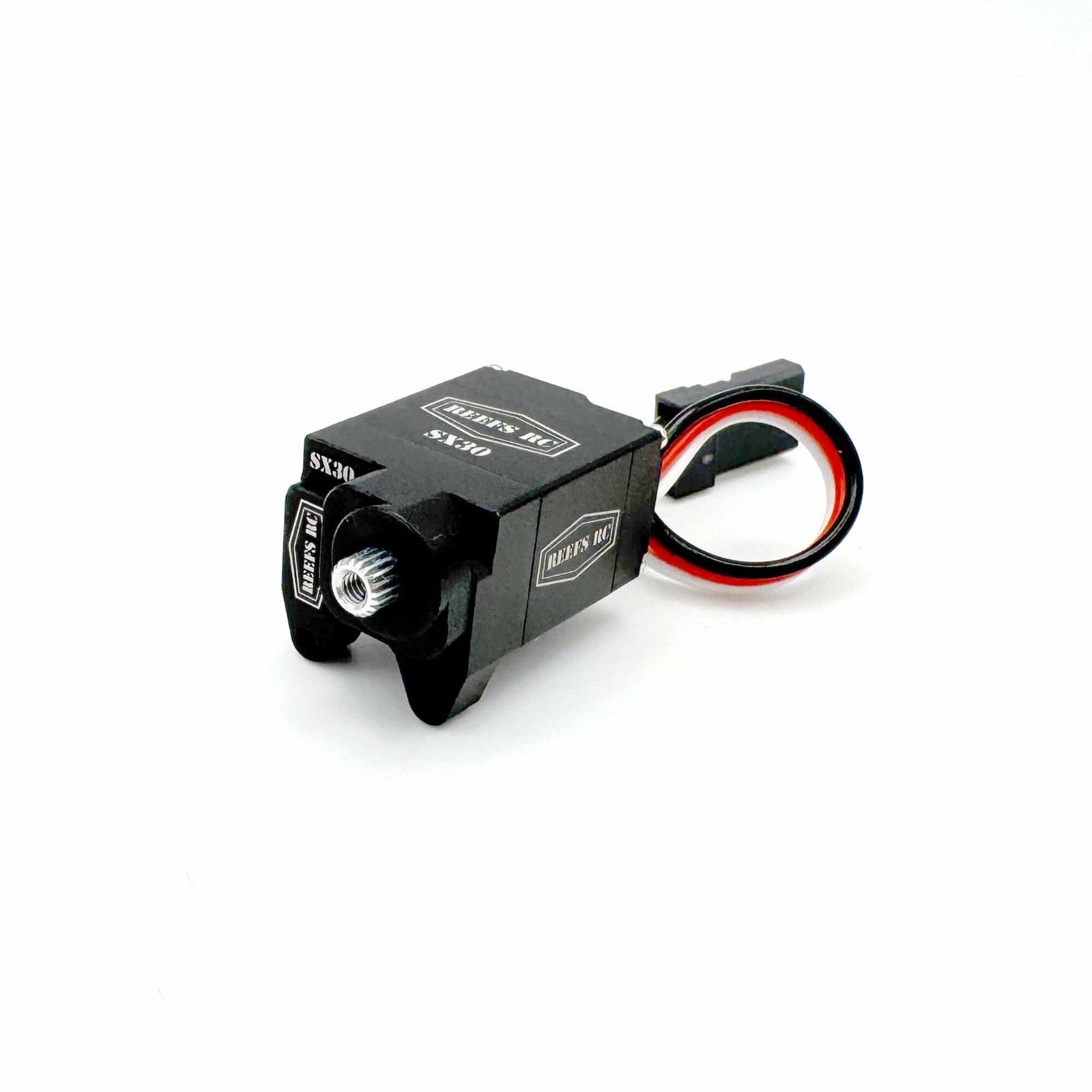

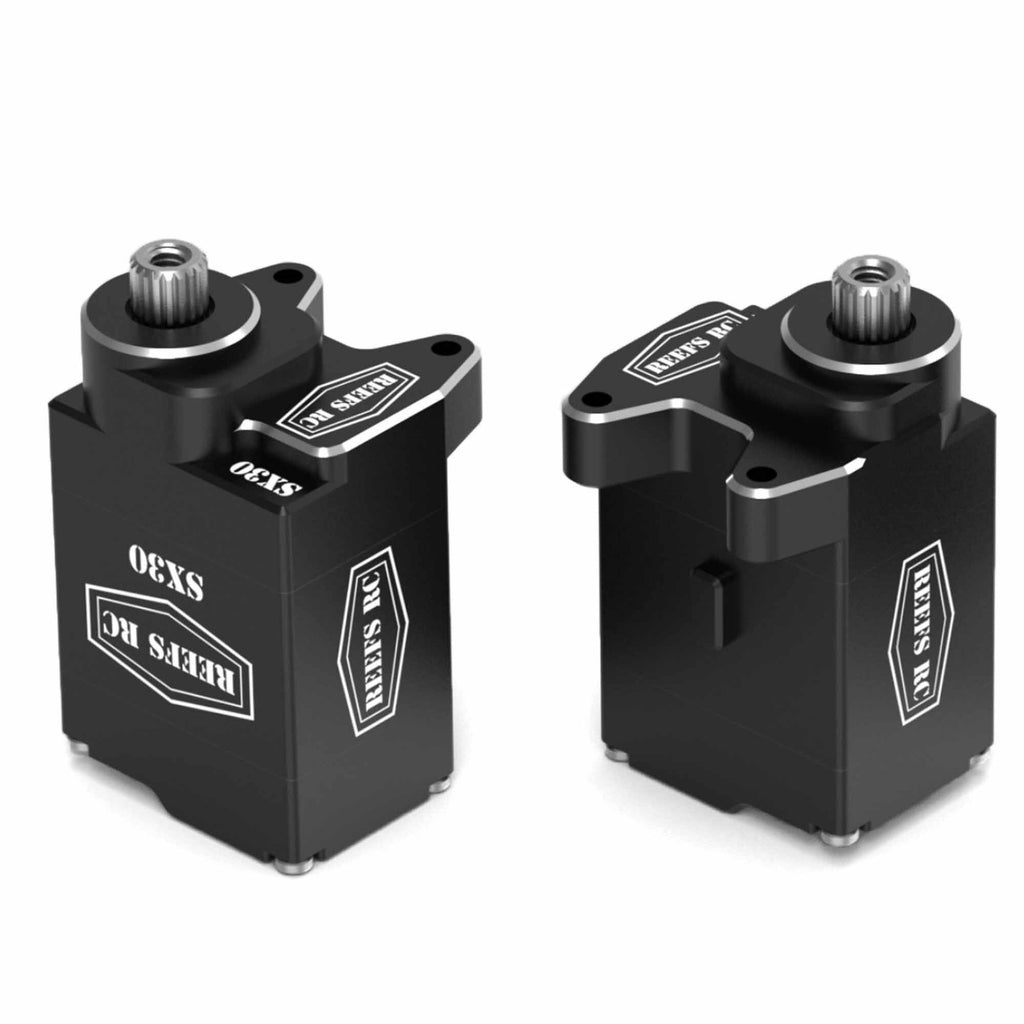

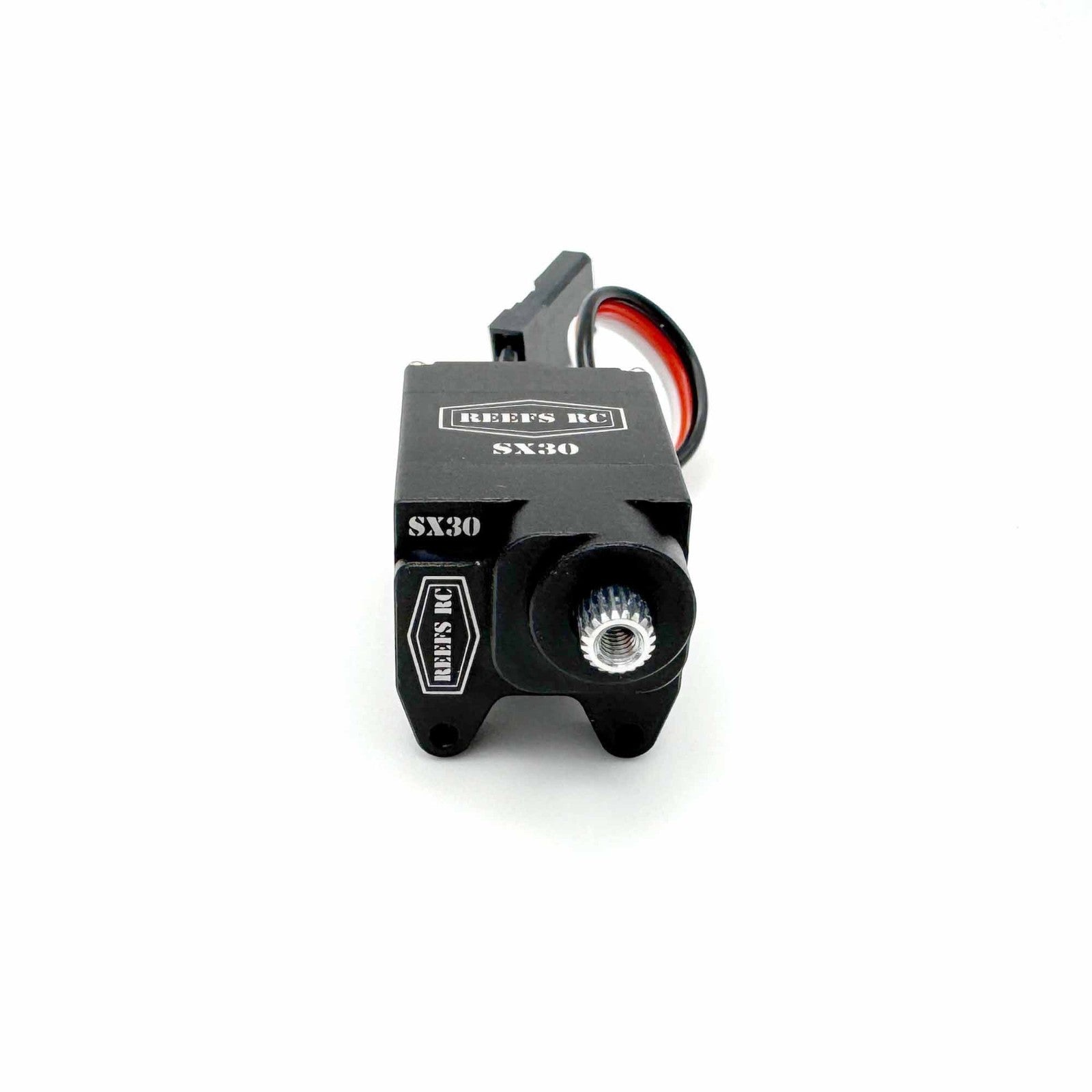

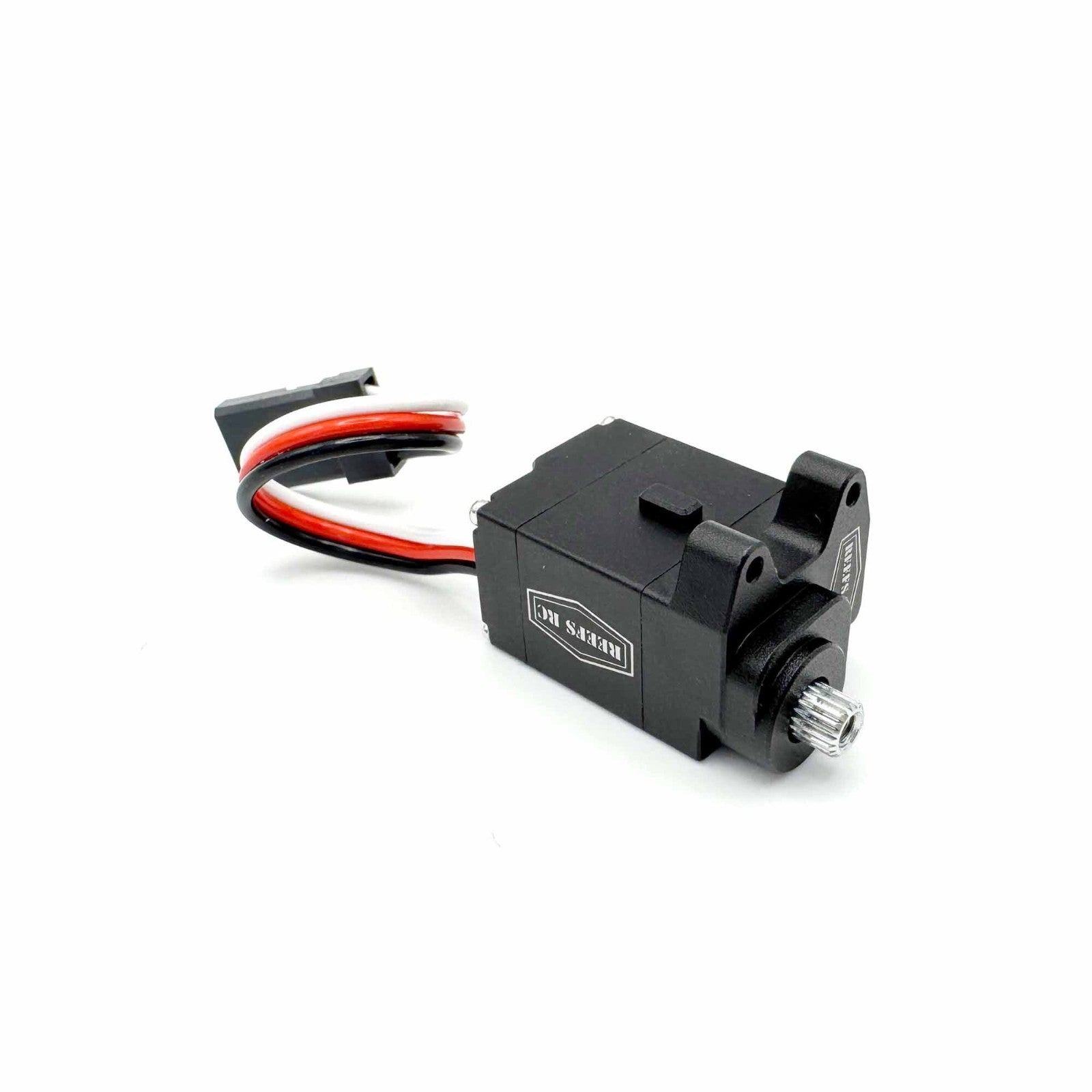

Reefs RC REEFS285 High Torque Metal Gear Sub Micro Servo High Voltage For SCX30

Hi-Torque Servo

Each servo includes three different lengths of black nylon servo arms. For those looking to upgrade, it’s also compatible with the REEFS286 aluminum servo horn with stainless steel pivot ball (pivot ball pre-installed and ready to run). Installation is quick and easy—only seven screws need to be removed and replaced, so you can be up and running in minutes with increased torque and added weight to improve your SCX30’s performance.

Specifications


Application
1/30 Axial SCX30
Bearing
Sealed Bearings
Deadband
2µs
Gear Type
Metal
Product Height
0.43" (11 mm)
Product Length
0.96" (24 mm)
Product Weight
.29 oz (8.2g)
Product Width
0.59" (15 mm)
Servo Operating Voltage
4.8 - 8.4V (HV)
Spline Count
20 - Tooth
Torque
35oz (2.5kg)@ 6.0v/ 39oz (2.8kg)@ 7.4v/ 42oz (3.0kg)@ 8.4v
Water-Resistant
Yes
