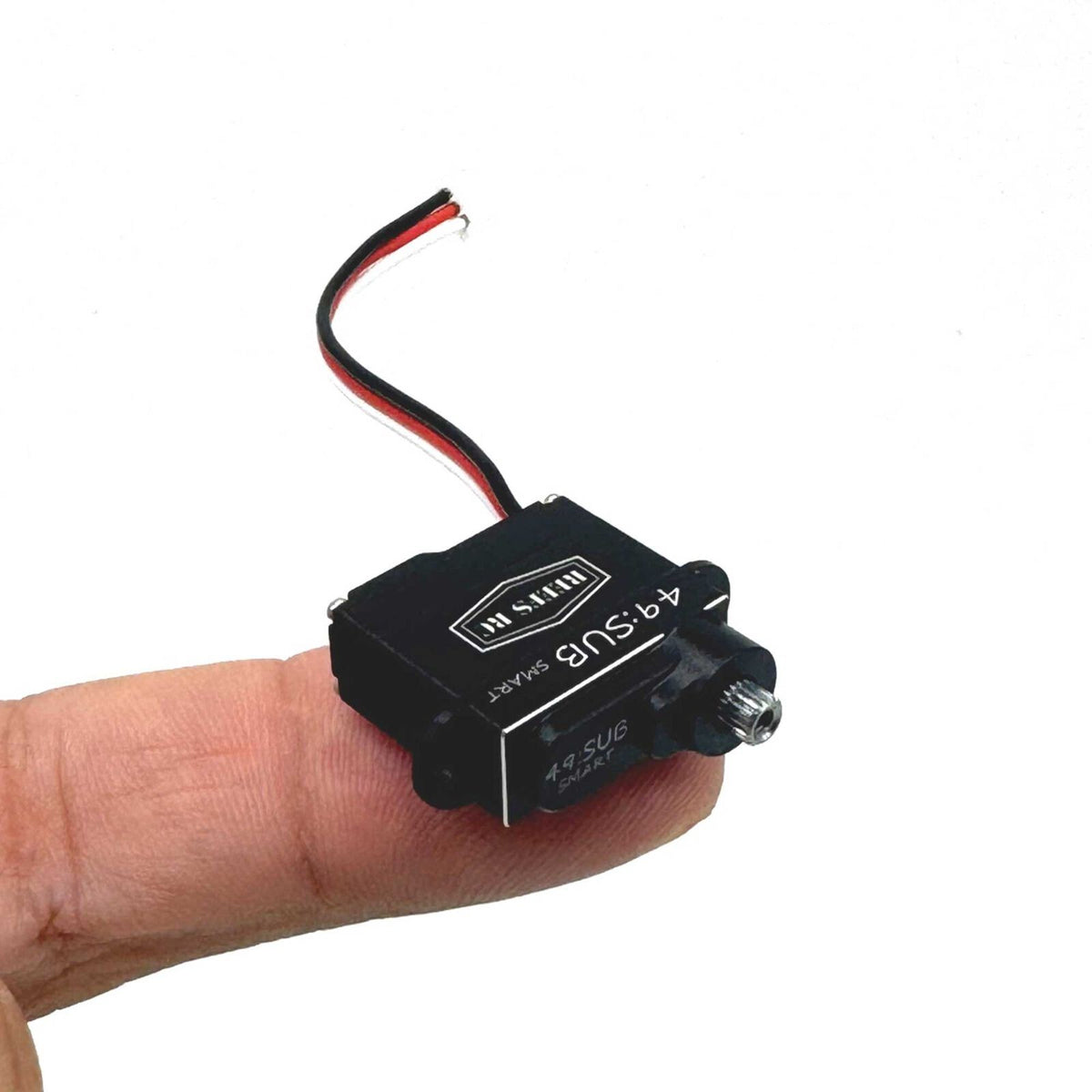

REEFS RC 49 SUB Micro SMART Servo / Winch – REEFS207

The REEFS RC 49 SUB Micro SMART Servo is a compact, high-torque, high-speed servo designed for applications where space is limited. It can be used as a precision micro steering servo or programmed for winch operation using the optional REEFS LINK programmer.

Product Details:

• Genuine REEFS RC servo

• High-torque, high-speed micro servo

• Programmable for servo or winch applications

• SMART Chip Technology

• PWM control

• CNC-machined aluminum case

• Internal metal gears

• Sealed bearing

• High-voltage operation

• 180° ±10° operating travel

• 20T, 4.0mm spline

• Lightweight 7g design

• REEFS LINK required for programming

Specifications:

• Operating Voltage: 4.8–8.4V

• Torque: 37 oz-in @ 6.0V / 43 oz-in @ 7.4V / 49 oz-in @ 8.4V

• Speed: 0.075 sec @ 6.0V / 0.058 sec @ 7.4V / 0.05 sec @ 8.4V

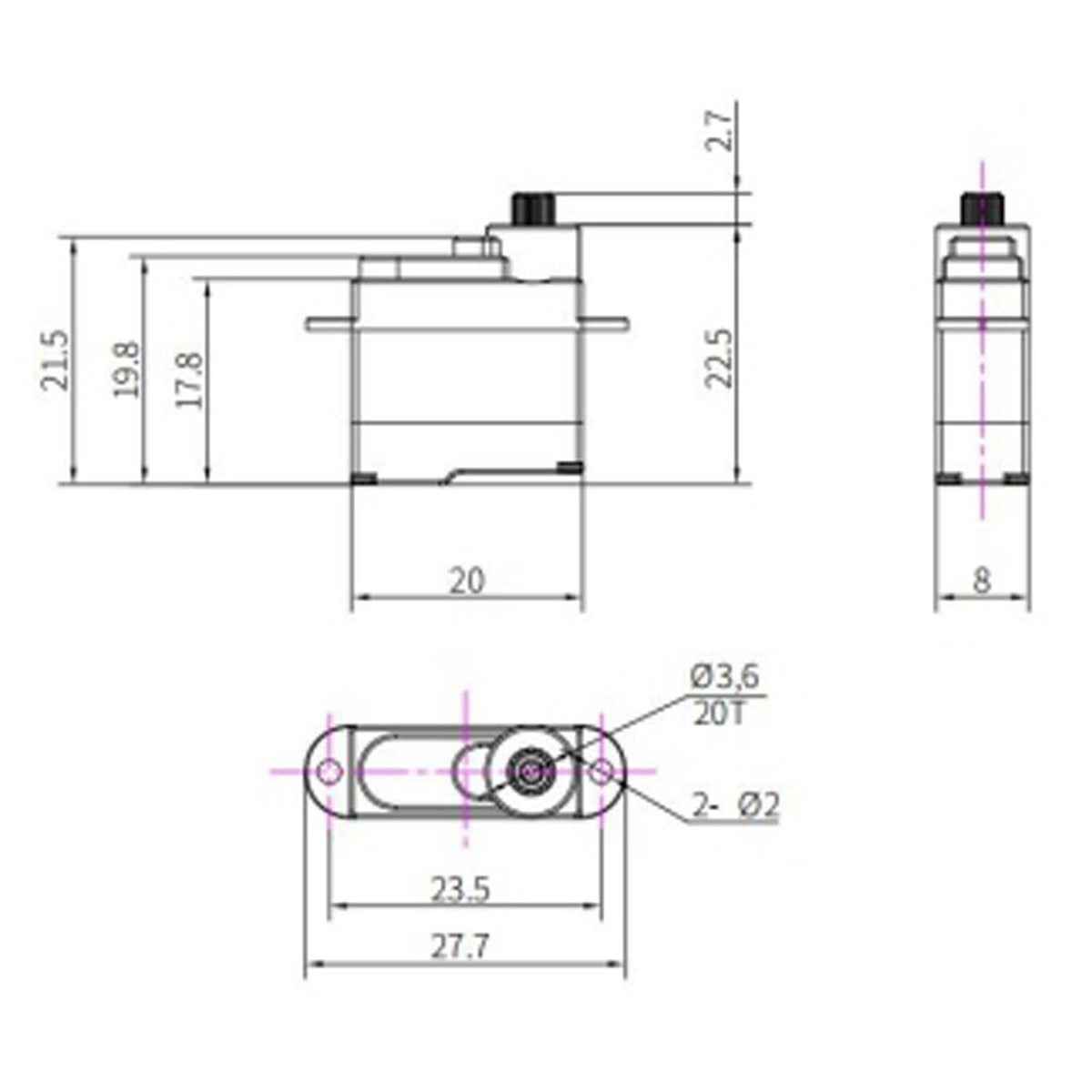

• Dimensions: 20 × 8 × 17.8mm

• Weight: 7g (0.24 oz)

• Spline: 20T, 4.0mm

• Dead Band: 2µs

• Motor Drive: IC Drive

• Temperature Range: -15°C to +70°C

Package Includes:

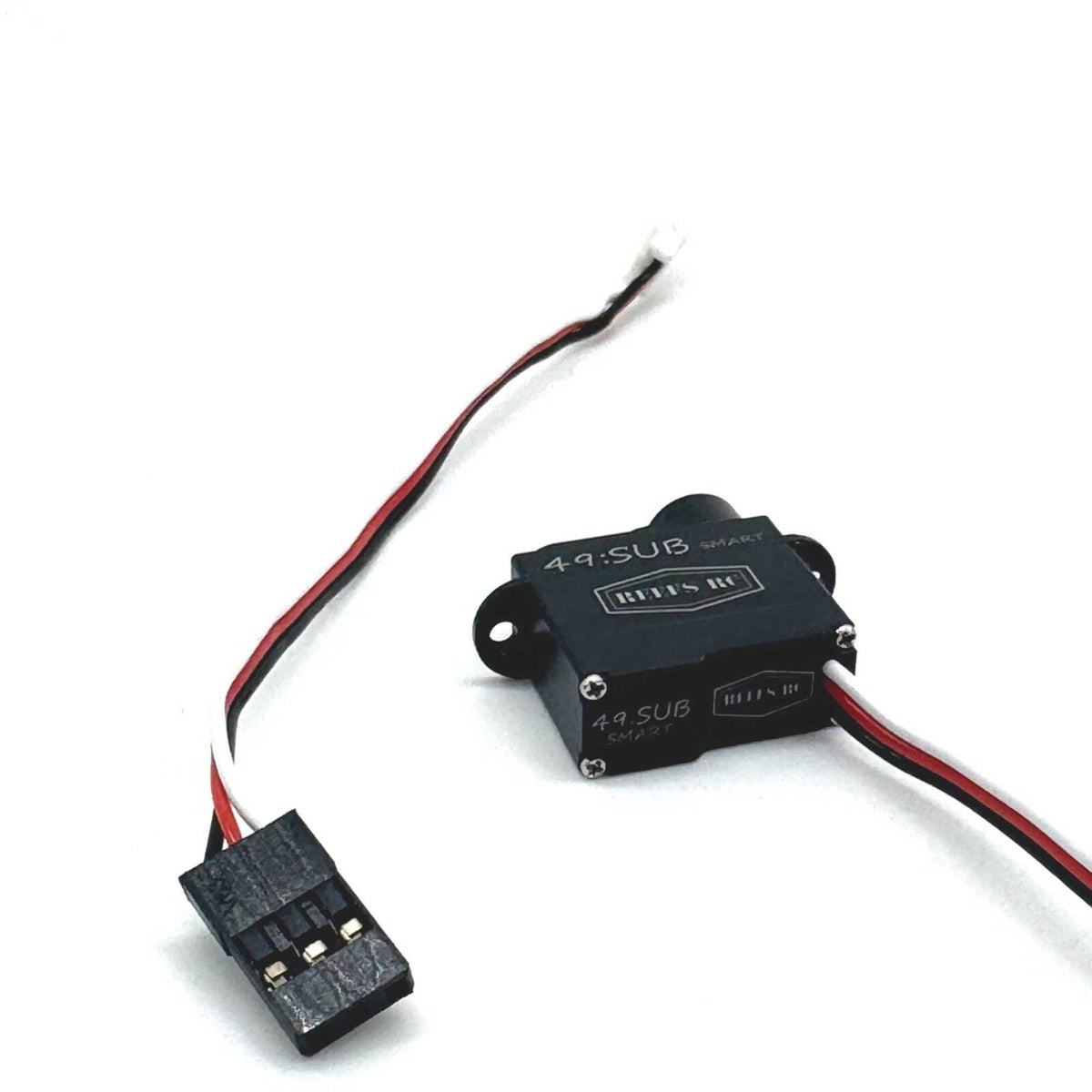

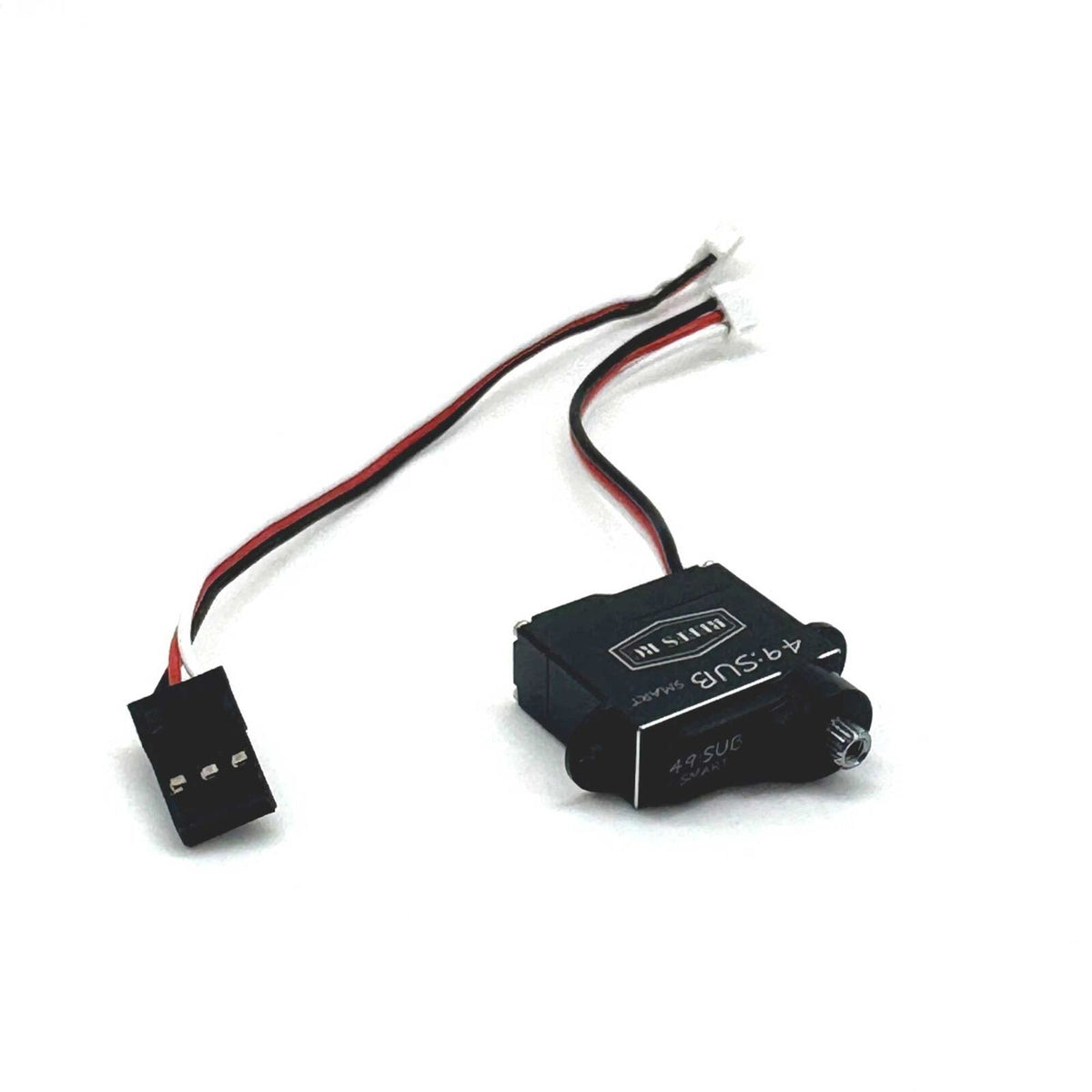

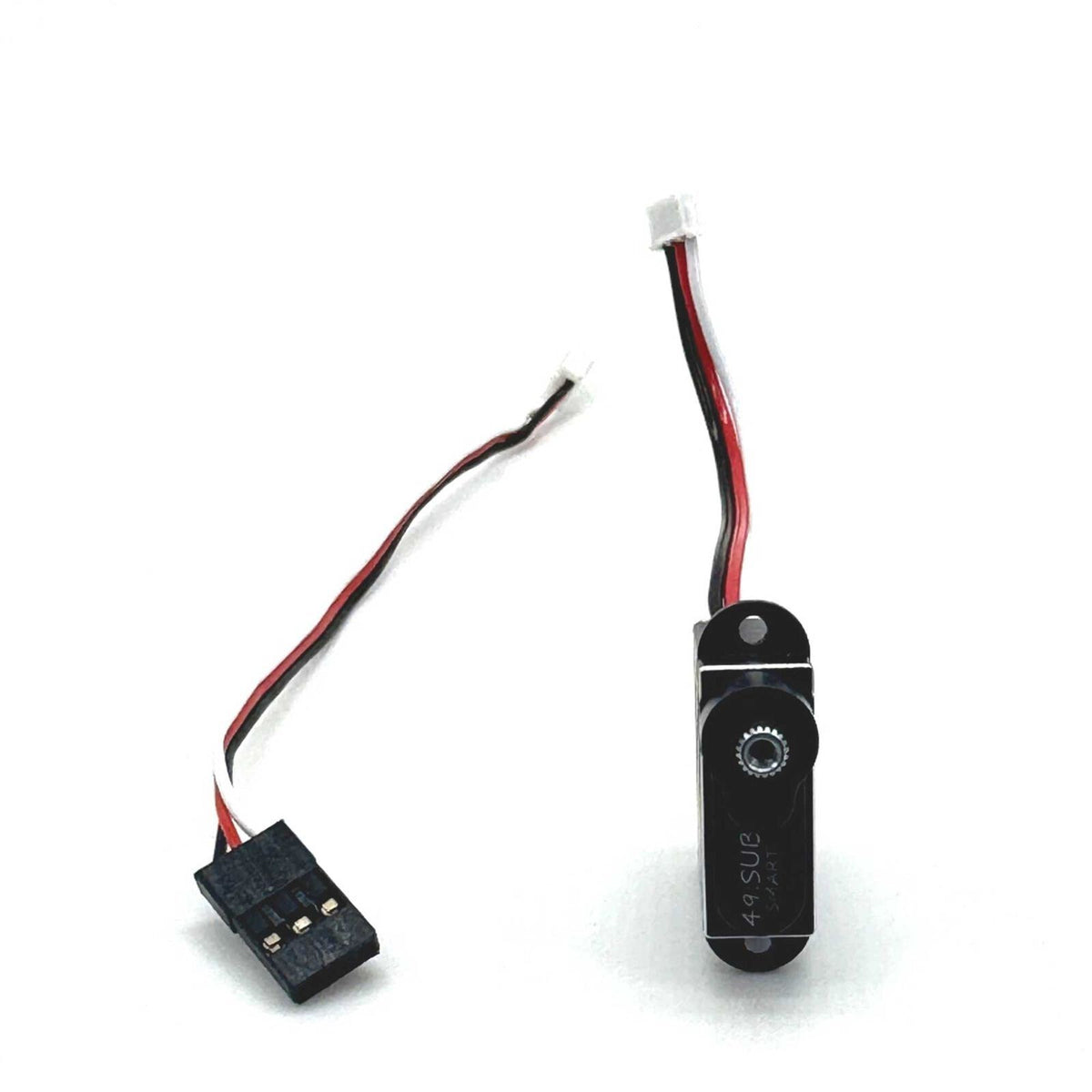

• (1) REEFS RC 49 SUB Micro SMART Servo

• (1) JST Adapter

Part Number: REEFS207

Note: The servo comes configured as a servo. REEFS LINK is required to program it for winch operation.
