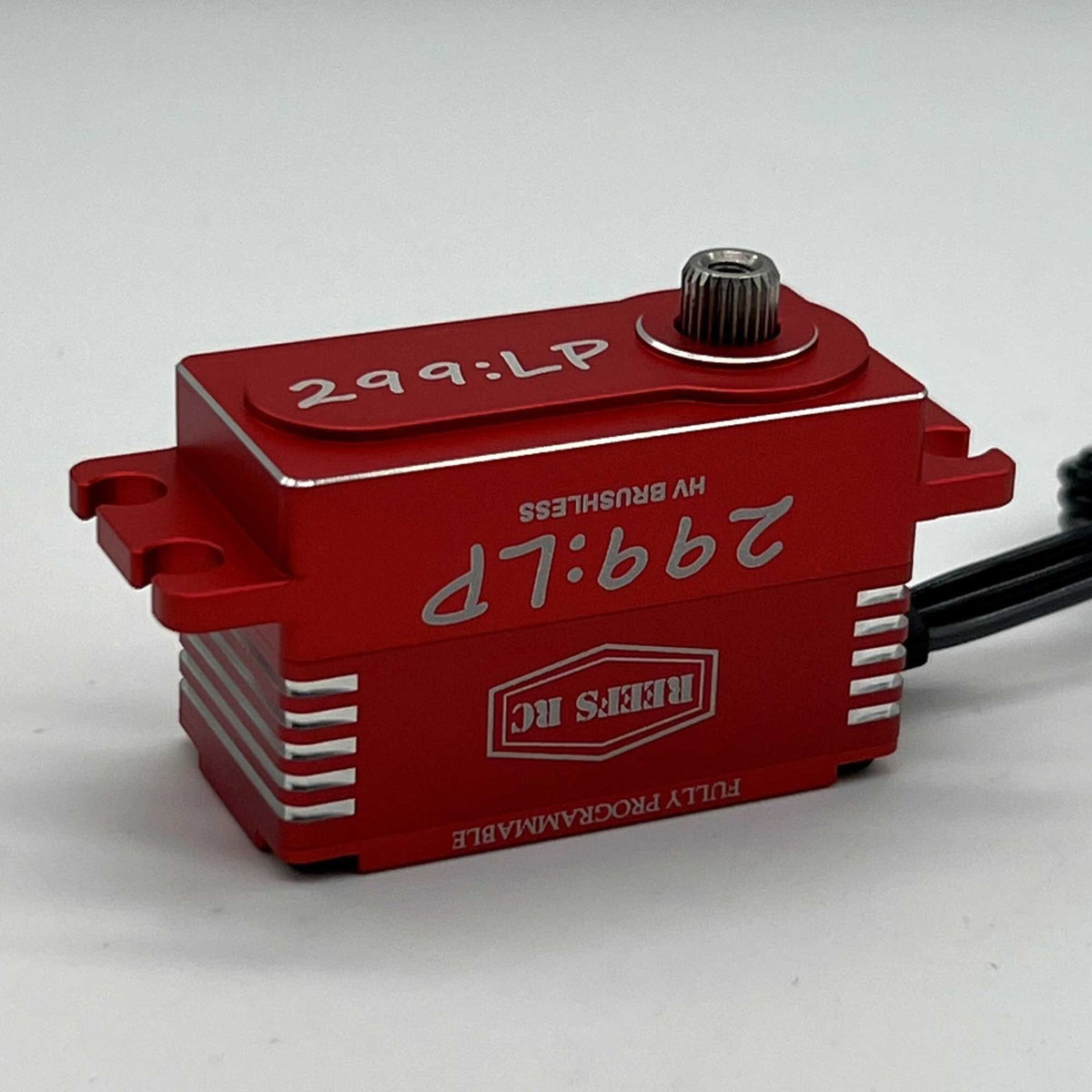

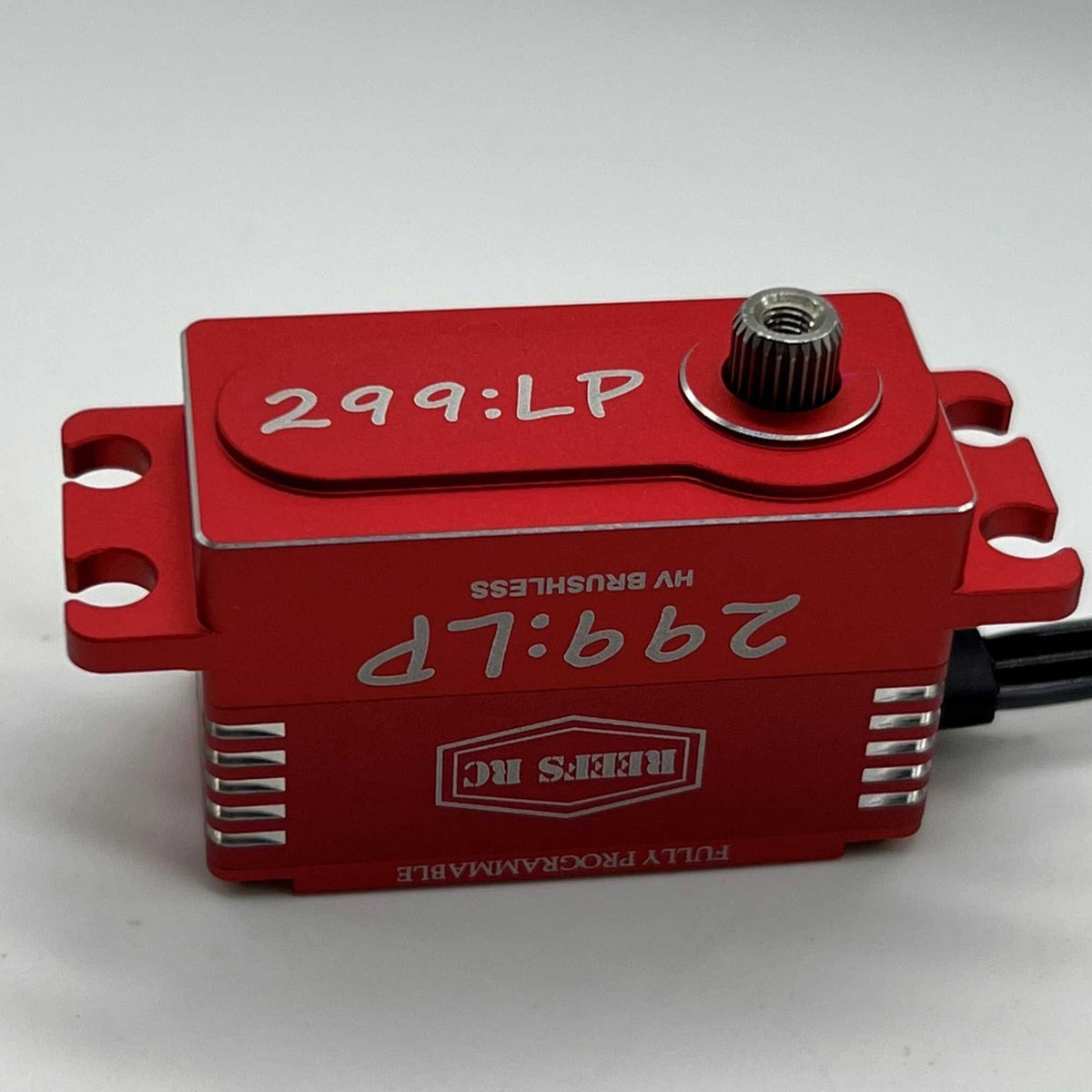

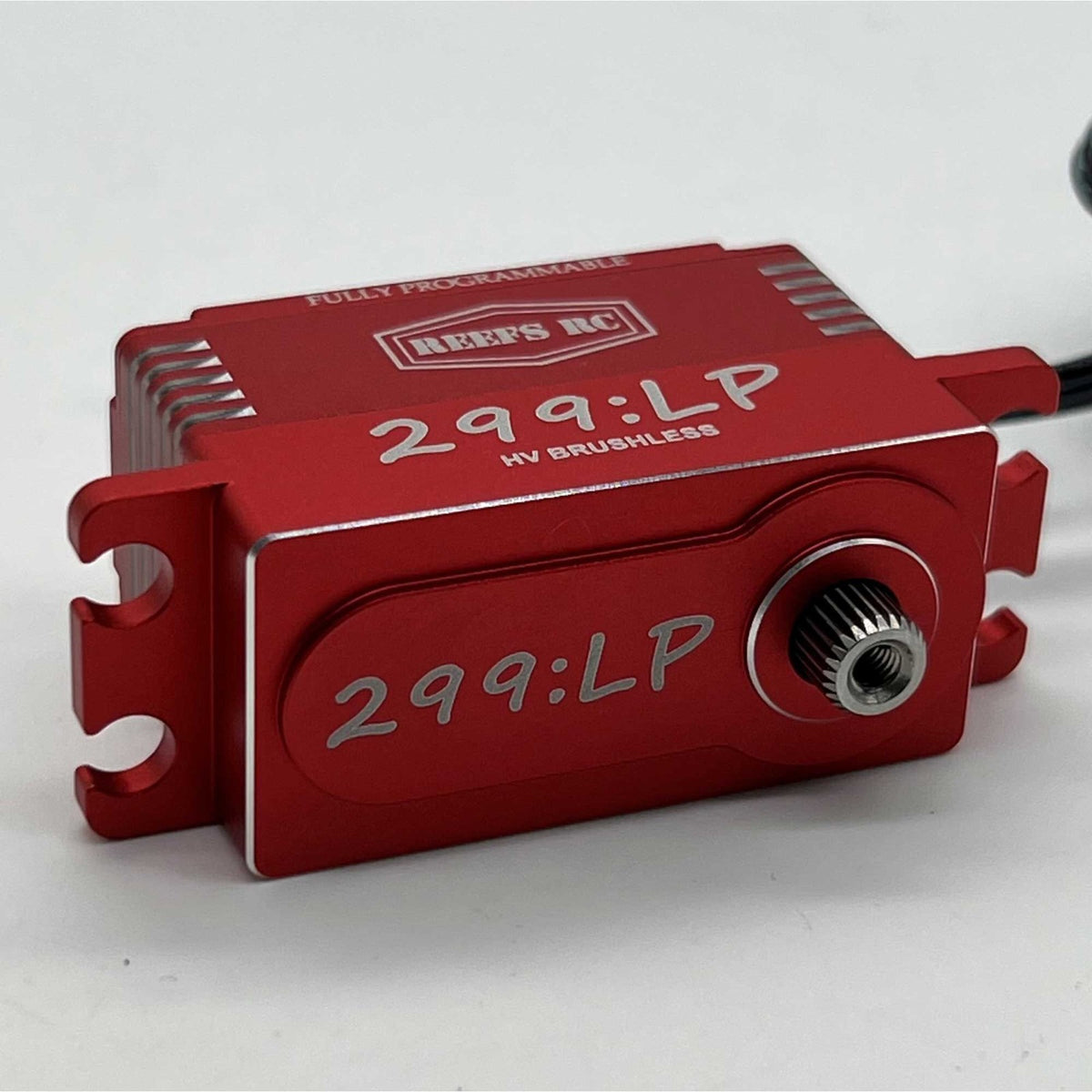

The REEFS RC 299LP Special Edition Red Servo delivers fast, precise steering in a compact, low-profile design. Featuring a high-speed brushless motor, durable steel gears, and a CNC-machined aluminum case with a striking red anodized finish, this servo is ideal for RC racers, drift cars, and other performance applications.

Key Features

• High-speed brushless motor for responsive steering

• Low-profile design for installations with limited clearance

• Red anodized CNC-machined aluminum case with cooling fins

• Steel internal gears for durability

• Water-resistant construction with seven-point seals

• Magnetic angle sensor for precise positioning

• Pulse-width modulation (PWM) control

• Programmable operation using REEFS software and the optional REEFS LINK

• 25-tooth (25T) output spline

• Dual ball bearings

Specifications

• Brand: REEFS RC

• Part Number: SEHREEFS130

• Model: 299LP Special Edition Red

• Motor Type: Brushless

• Operating Voltage: 4.8–8.4V

• Torque:

  • 278 oz-in at 6.0V

  • 299 oz-in at 7.4V

  • 313 oz-in at 8.4V

• Speed:

  • 0.07 sec/60° at 6.0V

  • 0.06 sec/60° at 7.4V

  • 0.057 sec/60° at 8.4V

• Dimensions: 1.60 × 0.79 × 1.00 in (40.8 × 20.2 × 26.5 mm)

• Weight: 2.0 oz (57.2 g)

• Gears: Steel

• Bearings: Dual ball bearings

• Output Spline: 25T

• Deadband: 2 µs

Package Includes

• (1) REEFS RC 299LP Special Edition Red Servo

• Servo horns and mounting hardware

Please Note: REEFS LINK is required for programming and sold separately. Confirm your vehicle's servo dimensions, spline requirements, and operating voltage before installation.

Please verify your model and part number before ordering.
