Description
The RCGF Stinger 10cc RE is a powerful, compact 2-stroke gasoline engine designed for .40–.50 size RC airplanes. Its rear-exhaust configuration makes it especially well suited for narrow cowls and scale warbirds.
This latest-generation Stinger engine features improved materials, precision manufacturing, strong performance, and a Walbro carburetor. The package includes the electronic CDI ignition system, muffler, spark plug, mounting hardware, and other installation accessories.
Specifications
- Engine type: 2-cycle piston-valve gasoline engine
- Displacement: 10cc / .61 cu. in.
- Bore: 27.6mm / 1.08 in.
- Stroke: 17mm / .67 in.
- Maximum output: 1.9 HP at 12,000 RPM
- Operating range: 2,000–12,000 RPM
- Idle speed: Approximately 2,000 RPM
- Carburetor: Walbro
- Exhaust configuration: Rear exhaust
- Cooling system: Air cooled
- Ignition: Computer-controlled DC-CDI electronic ignition
- Ignition voltage: 7.4V–14V
- Spark plug: M8 1/4-32 or equivalent
- Recommended aircraft: .40–.50 size RC airplanes
Recommended Propellers
- 13x6
- 13x7
- 13x8
- 14x6
- Recommended break-in propeller: 13x7 or 14x6 two-blade propeller
Fuel and Oil Requirements
Use gasoline premixed with a high-quality 2-cycle engine oil.
- Conventional oil: 32:1 recommended
- Fully synthetic oil: 40:1 recommended
- Acceptable overall gasoline-to-oil range: 25:1–40:1
Recommended oils include Motul 800 2T, Red Line Two-Stroke Racing Oil, STIHL HP Ultra, or a comparable premium fully synthetic 2-cycle oil.
Ignition Battery Requirements
Compatible with:
- 7.4V–14V NiCd or NiMH battery
- 7.4V LiFe battery
- 2S LiPo battery
Important: Do not power the ignition system through a BEC, iBEC, or uBEC.

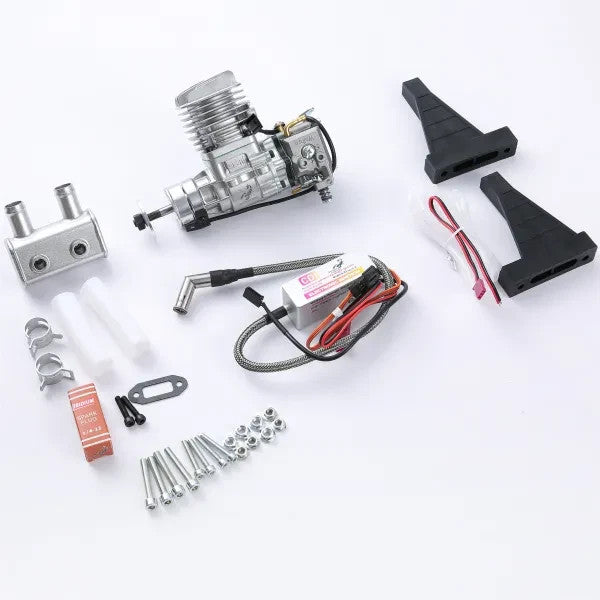

Package Includes
- RCGF Stinger 10cc RE engine
- Electronic CDI ignition module
- Muffler
- Spark plug
- Gaskets
- Mounting bolts
- Throttle-arm extension
- Instruction manual
Weight
- Engine: 1.03 lb / 468g
- Muffler: 1.4 oz / 40g
- Ignition module: 4.1 oz / 115g
- Total weight: Approximately 1.37 lb / 623g
Gasoline, 2-cycle oil, ignition battery, and propeller are required and sold separately.
