iFlight BLITZ F745 Flight Controller + E55 4-in-1 ESC + M8Q GPS Combo

Build or upgrade your FPV drone with this iFlight electronics combo featuring the BLITZ F745 Flight Controller, BLITZ E55 55A 4-in-1 ESC, and iFlight M8Q-5883 V2.0 GPS Module with integrated compass.

This combination provides a powerful flight-control system, high-current 4-in-1 ESC, and GPS/compass capability for compatible FPV drone builds.

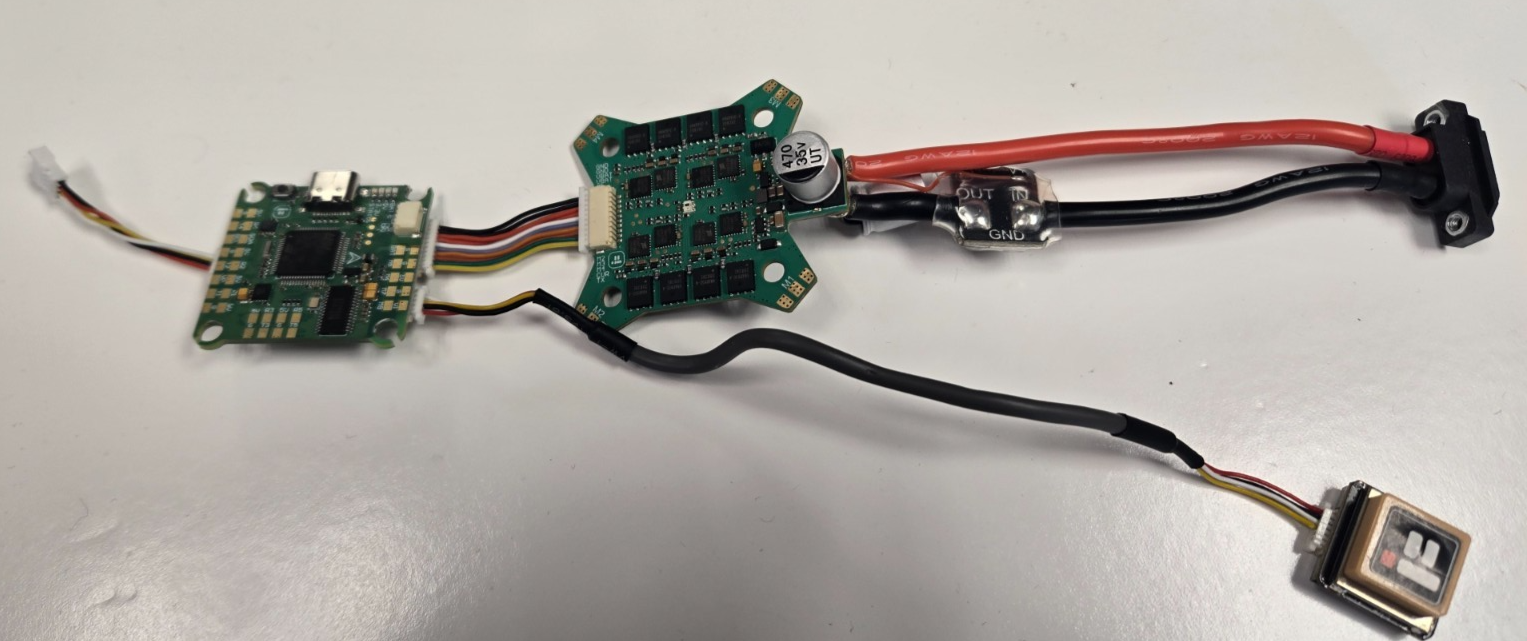

INCLUDED IN THIS COMBO:

• (1) iFlight BLITZ F745 Flight Controller

• (1) iFlight BLITZ E55 55A 4-in-1 ESC

• (1) iFlight M8Q-5883 V2.0 GPS Module with Compass

• Included wiring and mounting hardware as supplied by the manufacturer

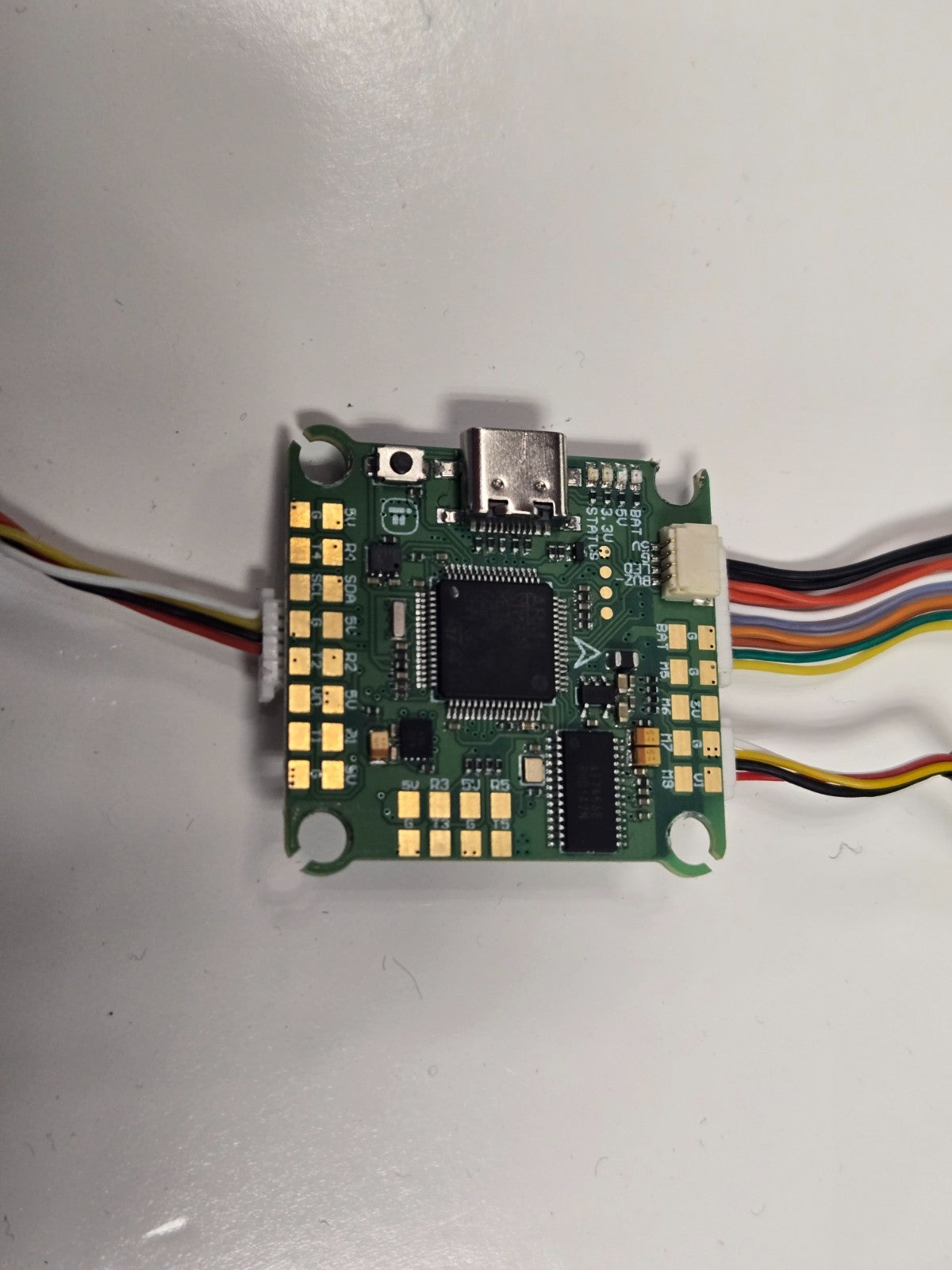

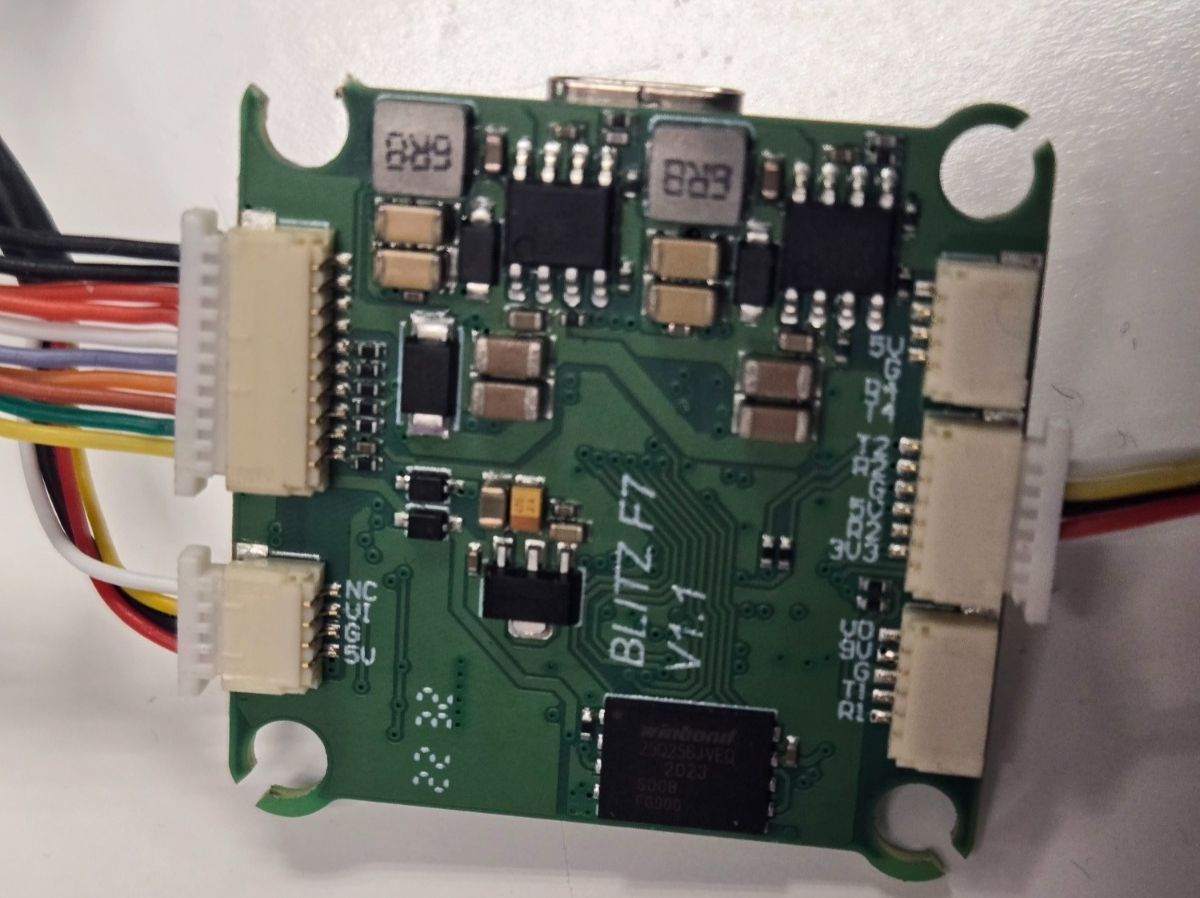

BLITZ F745 FLIGHT CONTROLLER FEATURES

• STM32F745 processor

• 30.5 x 30.5mm mounting pattern

• 6 UARTs

• Integrated OSD

• 32MB Blackbox flash

• Barometer

• DJI HD VTX plug-and-play connector

• Supports compatible Betaflight and ArduPilot configurations

• Compact stack design

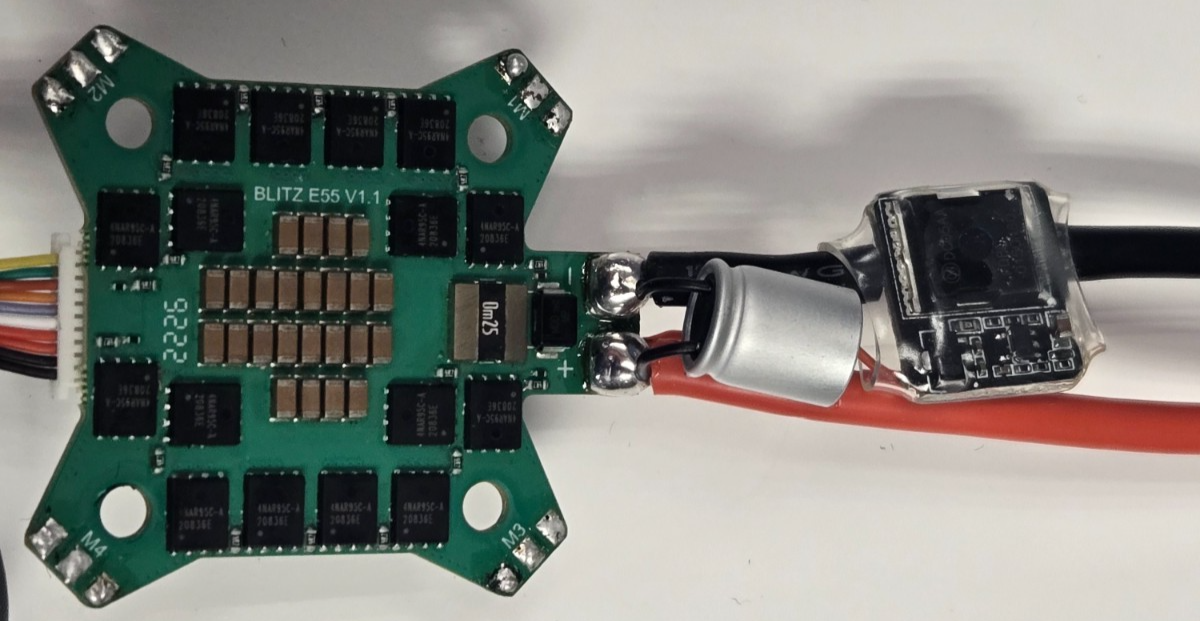

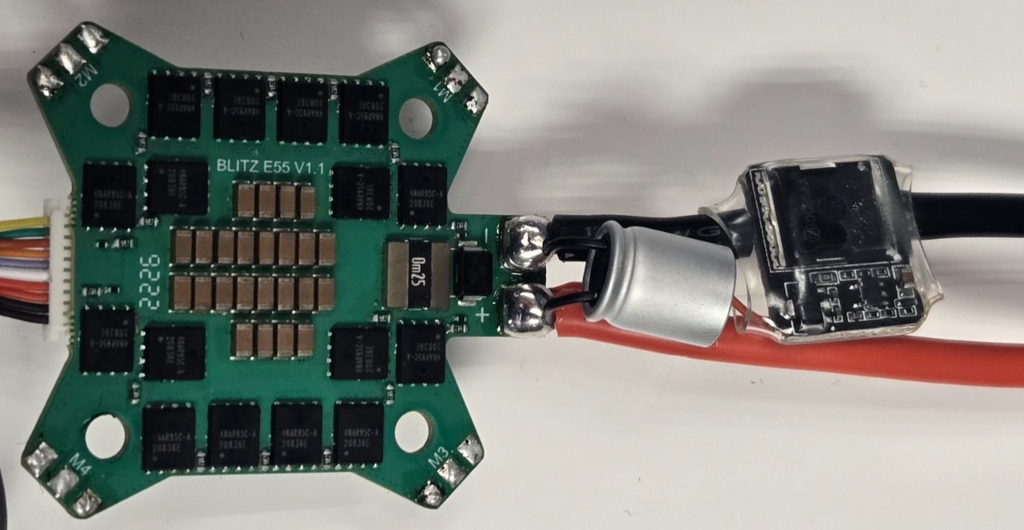

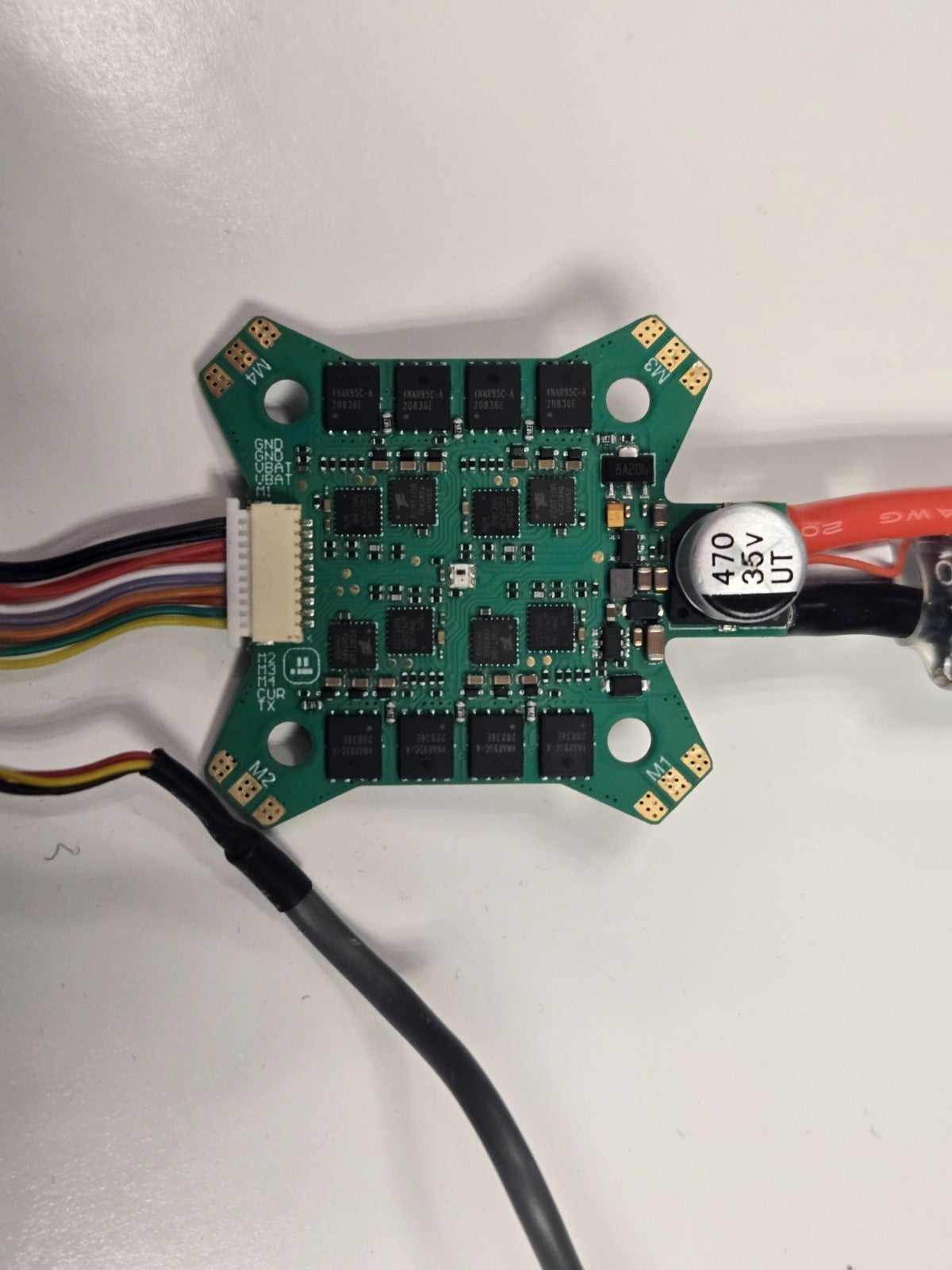

BLITZ E55 4-IN-1 ESC FEATURES

• 55A continuous current rating

• 65A burst current rating

• 4-in-1 brushless ESC design

• Compatible with 2S–6S LiPo batteries

• Current sensor

• Designed for high-performance FPV quadcopter applications

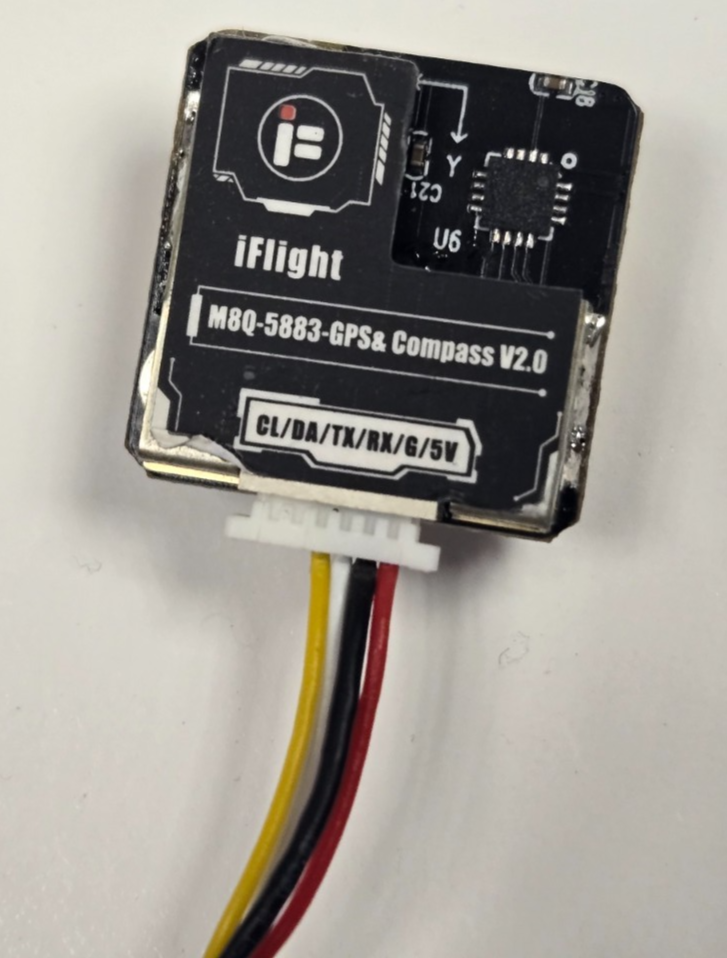

iFLIGHT M8Q-5883 V2.0 GPS MODULE FEATURES

• Integrated GPS/GNSS module

• Integrated QMC5883L compass

• High-sensitivity 15 x 15mm GPS patch antenna

• Built-in TCXO crystal

• Built-in capacitor for faster hot starts

• Additional front-end LNA

• Up to 10Hz refresh rate

• UART GPS connection

• I2C compass connection

• Designed for compatible FPV drone and flight-controller applications

The M8Q GPS module is based on a u-blox M8Q-series GNSS solution capable of receiving multiple satellite systems, while the iFlight version integrates the GPS antenna and compass into a compact module.

M8Q GPS SPECIFICATIONS:

• GPS Module: SAM-M8Q

• Compass: QMC5883L

• Refresh Rate: Up to 10Hz

• GPS Patch Antenna: 15 x 15mm

• Input Voltage: 3.3V–5V

• GPS Connection: UART RX/TX

• Compass Connection: I2C SDA/SCL

• Dimensions: Approximately 20 x 20 x 10.5mm

• Weight: Approximately 8g

APPLICATIONS:

• FPV quadcopters

• Long-range FPV builds

• GPS-equipped Betaflight builds

• Compatible ArduPilot builds

• Custom multirotor projects

IMPORTANT COMPATIBILITY NOTE:

Please verify your flight controller firmware, UART availability, GPS protocol settings, compass configuration, mounting requirements, battery voltage, and motor requirements before installation.

CONDITION:

• Brand New

• Genuine iFlight Components

This bundle combines the processing power of the BLITZ F745 flight controller, the high-current capability of the E55 55A 4-in-1 ESC, and the navigation capability of the M8Q-5883 GPS and compass module into one convenient FPV electronics package.
